OEM Part
OEM Part
90130-KYJ-900
SCREW, PAN, 6X22
Qty Required: 4
Ref #7 in Assembly
Part of Assembly

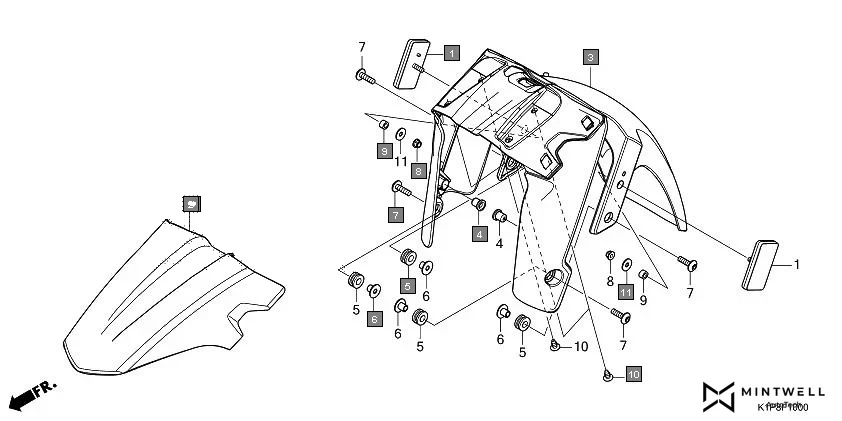

F-10
FRONT FENDER
14 parts in this assembly
Assembly Diagram
Ref #7
Supported Vehicles43
Related Parts
33740-KZK-951
REFLECTOR, FR. SIDE REFLEX
61111-K1P-D00ZA
FENDER A, FR. *R393* SPORTS RED 2
61111-K1P-D00ZB
FENDER A, FR. *NHC48P* PEARL NIGHTSTAR BLACK 2
61111-K1P-D00ZC
FENDER A, FR. *NHC40M* MAT SELENE SILVER METALLIC 2
61111-K1P-D00ZD
FENDER A, FR. *B236M* DECENT BLUE METALLIC
61120-K1P-D00ZA
FENDER SET B, FR.(WL) *TYPE1*
