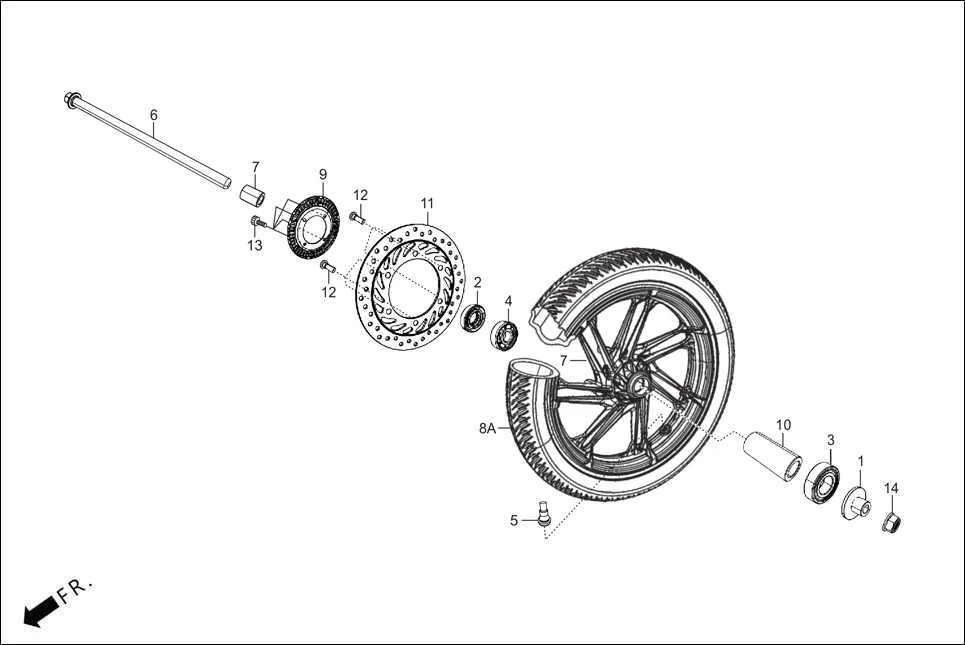

F-9 - FRONT WHEEL
Hero XTREME 125R OBD II(Apr., 2025) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 44802-AAB-A00 | SLEEVE FR WHEEL (LH) | 1 | |
| 2 | 90755-229-000 | OIL SEAL, 21 X 37 X 7 | 1 | |
| 3 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
| 4 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 5 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 6 | 44301-AAB-A00 | AXLE FR WHEEL | 1 | |
| 7 | 44311-KPL-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 8 | 44601-ACL-011 | WHEEL COMP FRONT | 1 | |
| 8 | 44711-ACL-001 | TYRE FRONT | 1 | |
| 9 | 45252-AAB-A00 | SENSOR RING FR DISC | 1 | |
| 10 | 42620-KTR-700 | COLLAR, REAR AXLE DISTANCE | 1 | |
| 11 | 45251-KRY-971 | DISK, FR BRAKE | 1 | |
| 12 | 90105-KL8-741 | BOLT, FR.DISK, 8 X 24 | 6 | |
| 13 | 96600-05012-10 | BOLT SOCKET 5X12 | 4 | |
| 14 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 14 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
