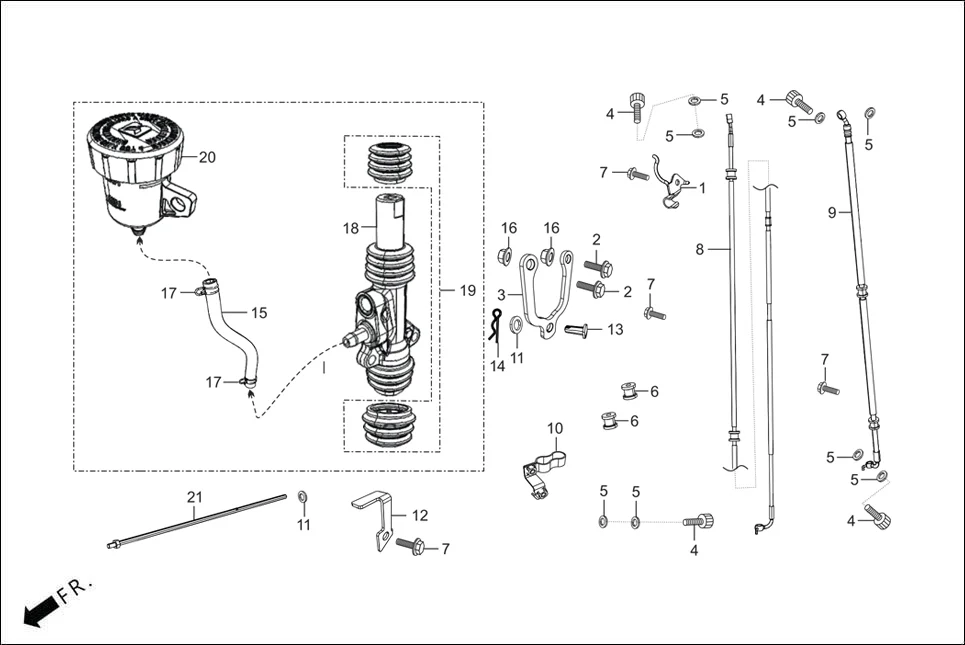

F-10A-CBS - ACTUATOR ASSY. (CBS)
Hero XTREME 125R OBD II(Apr., 2025) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45157-ACL-000 | CLAMPER FR BRAKE HOSE | 1 | |
| 2 | 95701-AAN-E00 | BOLT FLANGE 6X22 | 2 | |
| 3 | 43442-ACL-000 | U CLAMP ACTUATOR | 2 | |
| 4 | 90145-RAA-000 | OIL BOLT 10X22 | 4 | |
| 5 | 90545-ABZ-000 | WASHER OIL BOLT | 8 | |
| 6 | 46427-AAB-A00 | RUBBER HOSE CLAMP | 2 | |
| 7 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 4 | |
| 8 | 4311A-ACL-000 | STEEL BRAIDED HOSE ASSY | 1 | |
| 9 | 45126-ACL-000 | HOSE COMP FR BRAKE | 1 | |
| 10 | 45156-ACL-000 | CLAMPER FR. BRAKE | 1 | |
| 11 | 90502-KRY-930 | WASHER , BRAKE ROD | 2 | |
| 12 | 43551-AAN-B10 | BRACKET,RESERVOIR | 1 | |
| 13 | 95015-ACL-000 | PIN C JOINT | 1 | |
| 14 | 94252-07100 | PIN LOCK 7MM | 1 | |
| 15 | 43510-ACL-000 | HOSE KIT,ACTUATOR | 1 | |
| 16 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 17 | 43514-AAN-G00 | CLIP, ACTUATOR HOSE | 2 | |
| 18 | 43540-AAN-E00 | ACTUATOR, CBS | 1 | |
| 19 | 43539-AAN-E00 | BOOT SET | 1 | |
| 20 | 43550-AAZ-310 | RESERVOIR COMP RR | 1 | |
| 21 | 4344A-ACL-000 | ROD BRAKE ASSEMBLY | 1 | |
