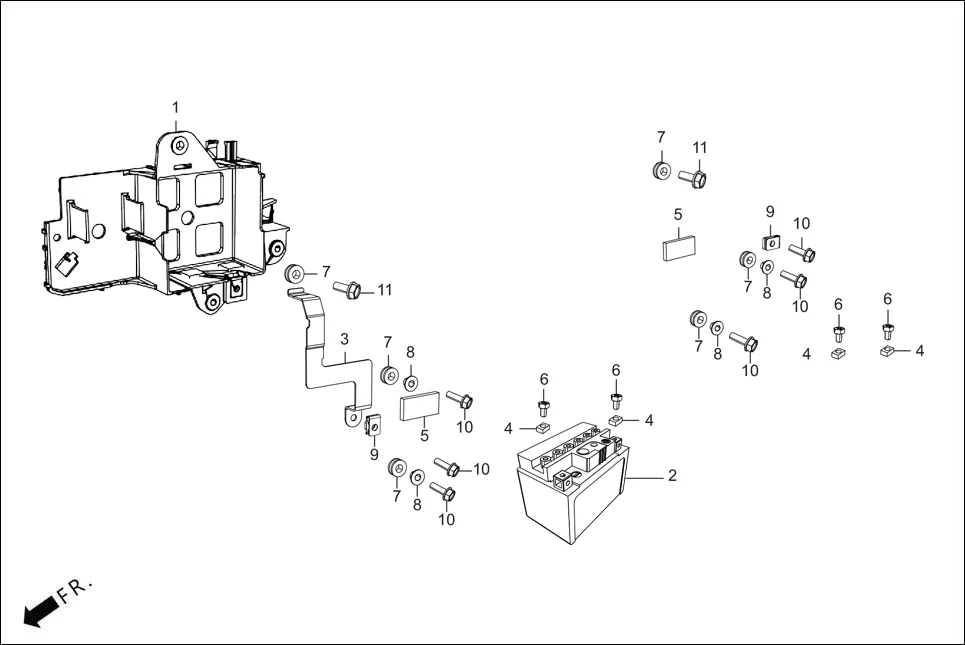

F-25A - BATTERY ASSY.
Hero XTREME 125R OBD II(Apr., 2025) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 1723A-ACL-000 | BOX BATTERY ASSY | 1 | |
| 1 | 31500-KRP-N41 | BATTERY ASSY MF 5 | 1 | |
| 2 | 31500-ABH-501 | BATTERY ASSY 4AH | 1 | |
| 2 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 3 | 50327-ACL-000 | BAND BATTERY ASSY | 1 | |
| 4 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 5 | 83407-KTR-940 | RUBBER, BATTERY | 1 | |
| 6 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 7 | 83543-RAA-000 | RUBBER GROMMET BATTERY BOX | 3 | |
| 8 | 90501-ABW-E00 | COLLAR 7MM | 2 | |
| 9 | 90311-MT3-000 | NUT, CLIP, 6 MM | 1 | |
| 10 | 95701-06018-00 | BOLT FLANGE 6X18 | 3 | |
| 11 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 1 | |
