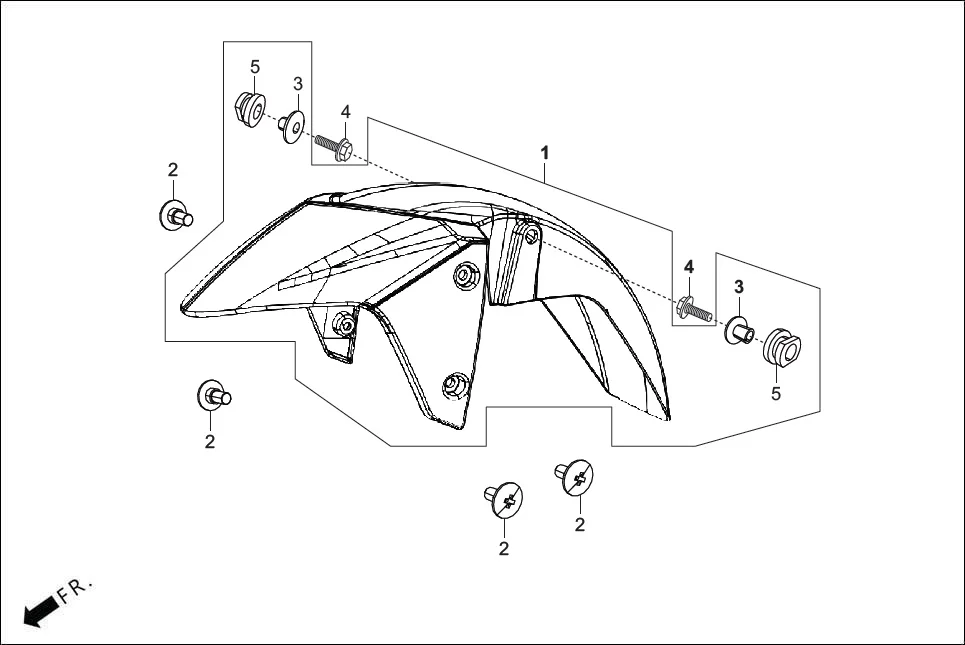

F-6 - FRONT FENDER
Hero XTREME 125R OBD II(Apr., 2025) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 6110A-ACL-000A | FRONT FENDER SUB. ASSY | 1 | |
| 1 | 6110A-ACL-000B | FRONT FENDER SUB. ASSY | 1 | |
| 1 | 6110A-ACL-000C | FRONT FENDER SUB. ASSY | 1 | |
| 1 | 6110A-ACL-000H | FRONT FENDER SUB ASSY (PEARL RED) | 1 | |
| 1 | 6110A-ACL-000G | FRONT FENDER SUB ASSY (ABRAXAS ORANGE) | 1 | |
| 1 | 6110A-ACL-000M | FRONT FENDER SUB. ASSY (MOON YELLOW) | 1 | |
| 1 | 6110A-ACL-000N | FRONT FENDER SUB ASSY (LEAF GREEN METALLIC) | 1 | |
| 2 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 4 | |
| 3 | 90502-KEZ-900 | COLLAR, RUBBER CUSHION | 2 | |
| 4 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 5 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 2 | |
