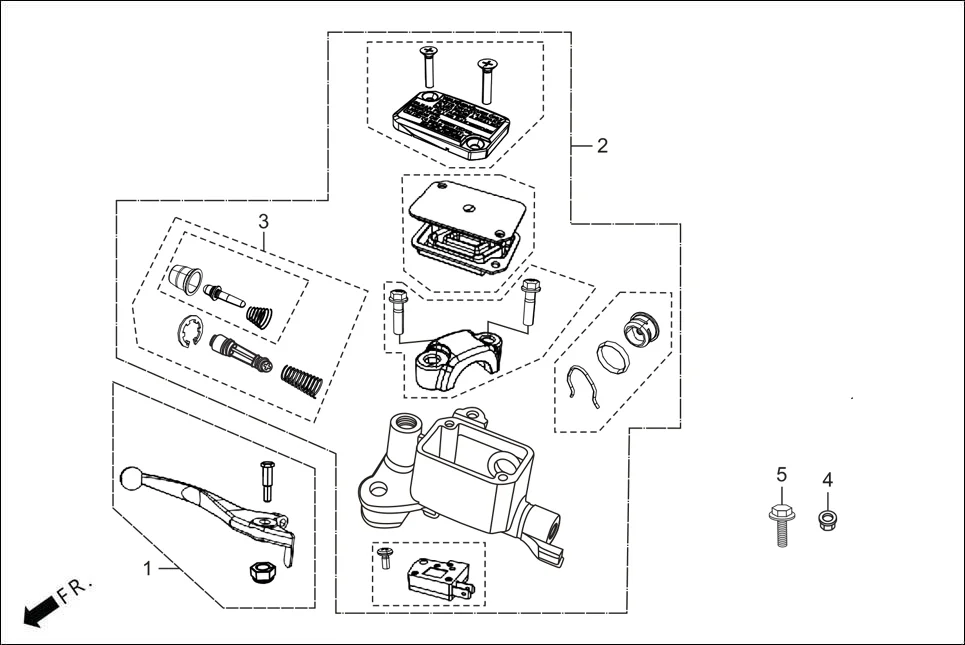

F-4A-CBS - FRONT DISC BRAKE ASSY.(MASTER CYL.)(CBS)
Hero XTREME 125R OBD II(Apr., 2025) · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45580-ACL-000 | BRAKE LEVER ASSY | 1 | |
| 2 | 45510-ACL-000 | MASTER CYL SUB ASSY, | 1 | |
| 3 | 45530-ACL-000 | PISTON KIT | 1 | |
| 4 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 5 | 95701-06014-0F | BOLT FLANGE 6X14 | 1 | |
