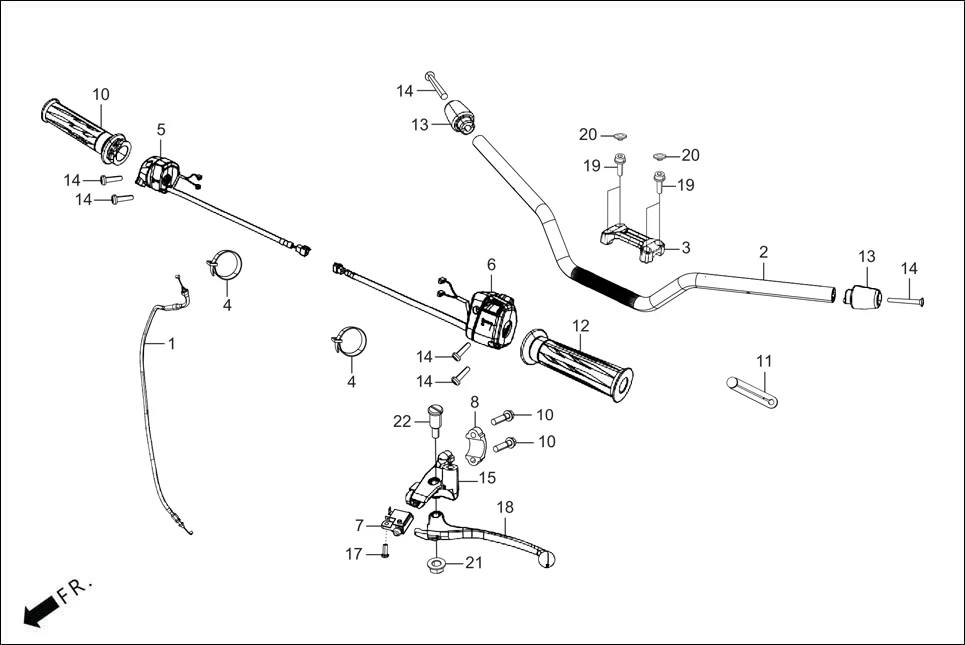

F-3B - HANDLE & HNDL COVER (HANDLE LEVER / SWITCH/ (CABLES)
Hero XTREME 125R OBD II(Apr., 2025) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ADJPF2C000000G | CABLE THROTTLE | 1 | |
| 2 | 53100-ACL-000 | PIPE STRG HANDLE | 1 | |
| 3 | 53131-ABZ-000 | HOLDER HANDLE UP | 1 | |
| 4 | 32161-404-000 | BAND B-1,WIRE | 2 | |
| 5 | 35150-ACL-001 | SWITCH ASSY I3S ENG STOP AND START | 1 | |
| 5 | 35150-ACL-011 | SWITCH ASSY ENG STOP AND START | 1 | |
| 6 | 35200-ACL-001 | SWITCH ASSY WINKER | 1 | |
| 6 | 35200-ACL-011 | SWITCH ASSY WINKER WITH HAZARD | 1 | |
| 7 | 35330-ACA-001 | SWITCH COMP FR LEVER | 1 | |
| 8 | 45517-166-000 | HOLDER, MASTER CYLINDER | 1 | |
| 9 | 96001-06022-07 | BOLT, FLANGE, SH.6X22 | 2 | |
| 10 | 53140-KVE-860 | GRIP COMP THROT | 1 | |
| 11 | 50555-RAA-000 | CABLE TIE BAND S | 1 | |
| 12 | 53166-KVE-860 | GRIP L HANDLE | 1 | |
| 13 | 53104-KVE-860 | WEIGHT STRG HNDL | 2 | |
| 14 | 90191-KVE-860 | SCREW OVAL 6X55 | 2 | |
| 15 | 53172-ACL-000 | BRACKET HANDLE LEVER | 1 | |
| 16 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 4 | |
| 17 | 93500-04010-1C | SCREW PAN 4X10 | 1 | |
| 18 | 53178-ACL-000 | LEVER COMP L HNDL | 1 | |
| 19 | 90102-KVN-900 | BOLT, SP. FLANGE SOCKET 6 X 22 | 1 | |
| 20 | 91455-MG8-000 | CAP, SOC BOLT 6 MM | 1 | |
| 21 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 22 | 90113-438-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
