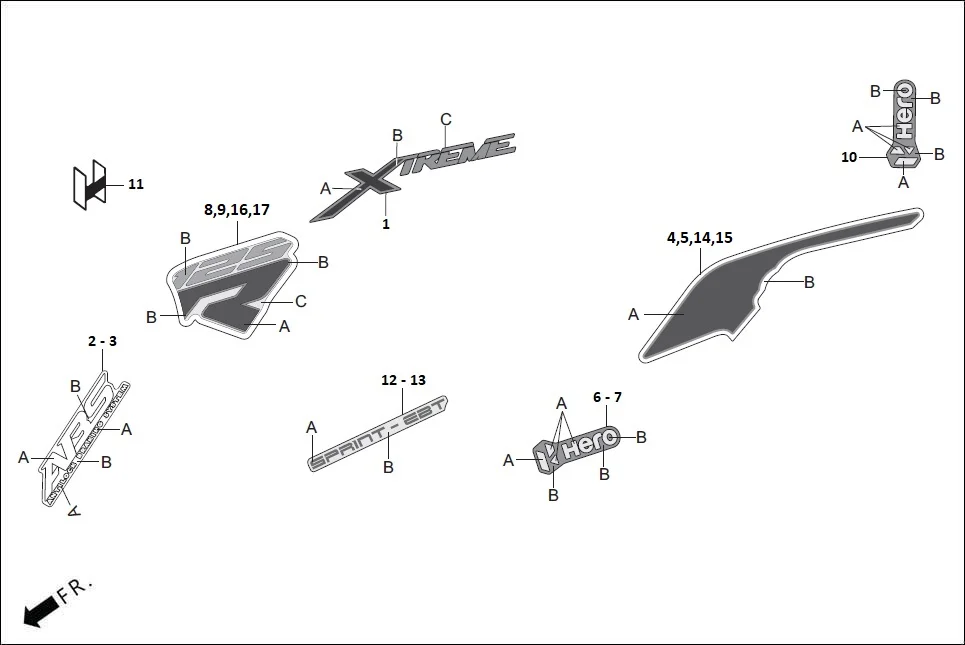

F-27-ABS - STRIPES/MARKS
Hero XTREME 125R OBD II(Apr., 2025) · 35 parts
Parts in This Assembly (35)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86830-ACL-000A | EMBLEM TANK COVER SIDE | 2 | |
| 1 | 86830-ACL-000B | EMBLEM TANK COVER SIDE | 2 | |
| 1 | 86830-ACL-000C | EMBLEM TANK COVER SIDE | 2 | |
| 1 | 86830-ACL-000H | EMBLEM TANK COVER SIDE | 1 | |
| 1 | 86830-ACL-000G | EMBLEM TANK COVER SIDE | 1 | |
| 2 | 86780-ACL-000A | MARK ABS FORK ASSY R FR | 1 | |
| 3 | 86880-ACL-000A | MARK ABS FORK ASSY L FR(TYPE-1) | 1 | |
| 4 | 86771-ACL-000A | STRIPE COWL R SIDE (TYPE-1) | 1 | |
| 4 | 86771-ACL-000B | STRIPE COWL R SIDE (TYPE-2) | 1 | |
| 4 | 86771-ACL-000C | STRIPE COWL R SIDE (TYPE-3) | 1 | |
| 5 | 86772-ACL-000A | STRIPE COWL L SIDE (TYPE-1) | 1 | |
| 5 | 86772-ACL-000B | STRIPE COWL L SIDE (TYPE-2) | 1 | |
| 5 | 86772-ACL-000C | STRIPE COWL L SIDE (TYPE-3) | 1 | |
| 6 | 86773-ACL-000A | H HERO MARK SIDE COVER BOX R (TYPE-1) | 1 | |
| 7 | 86774-ACL-000A | H HERO MARK SIDE COVER BOX L (TYPE-1) | 1 | |
| 8 | 86753-ACL-000A | STRIPE SIDE SHROUD OUTER R (TYPE-1) | 1 | |
| 8 | 86753-ACL-000B | STRIPE SIDE SHROUD OUTER R (TYPE-2) | 1 | |
| 8 | 86753-ACL-000C | STRIPE SIDE SHROUD OUTER R (TYPE-3) | 1 | |
| 9 | 86754-ACL-000A | STRIPE SIDE SHROUD OUTER L (TYPE-1) | 1 | |
| 9 | 86754-ACL-000B | STRIPE SIDE SHROUD OUTER L (TYPE-2) | 1 | |
| 9 | 86754-ACL-000C | STRIPE SIDE SHROUD OUTER L (TYPE-3) | 1 | |
| 10 | 77235-ACL-000A | H HERO MARK COWL CENTER RR (TYPE-1) | 1 | |
| 11 | 86830-ABW-800 | EMBLEM WINDSCREEN SUB. ASSY. | 1 | |
| 12 | 86751-ACL-000A | STRIPE COVER R SIDE (TYPE-1) | 1 | |
| 12 | 86751-ACL-000B | STRIPE COVER R SIDE (TYPE-2) | 1 | |
| 13 | 86752-ACL-000A | STRIPE COVER L SIDE (TYPE-1) | 1 | |
| 13 | 86752-ACL-000B | STRIPE COVER L SIDE (TYPE-2) | 1 | |
| 14 | ADJPS6B0020CGG | STRIPE COWL REAR RH (TYPE-1) | 1 | |
| 14 | ADJPS6B0020ARG | STRIPE COWL REAR RH (TYPE-2) | 1 | |
| 15 | ADJPS6B0030CGG | STRIPE COWL REAR LH (TYPE-1) | 1 | |
| 15 | ADJPS6B0030ARG | STRIPE COWL REAR LH (TYPE-2) | 1 | |
| 16 | ADJPS6B0000CGG | STRIPE A SHROUD RH (TYPE-2) | 1 | |
| 16 | ADJPS6B0000ARG | STRIPE A SHROUD RH (TYPE-1) | 1 | |
| 17 | ADJPS6B0010ARG | STRIPE A SHROUD LH (TYPE-1) | 1 | |
| 17 | ADJPS6B0010CGG | STRIPE A SHROUD LH (TYPE-2) | 1 | |
