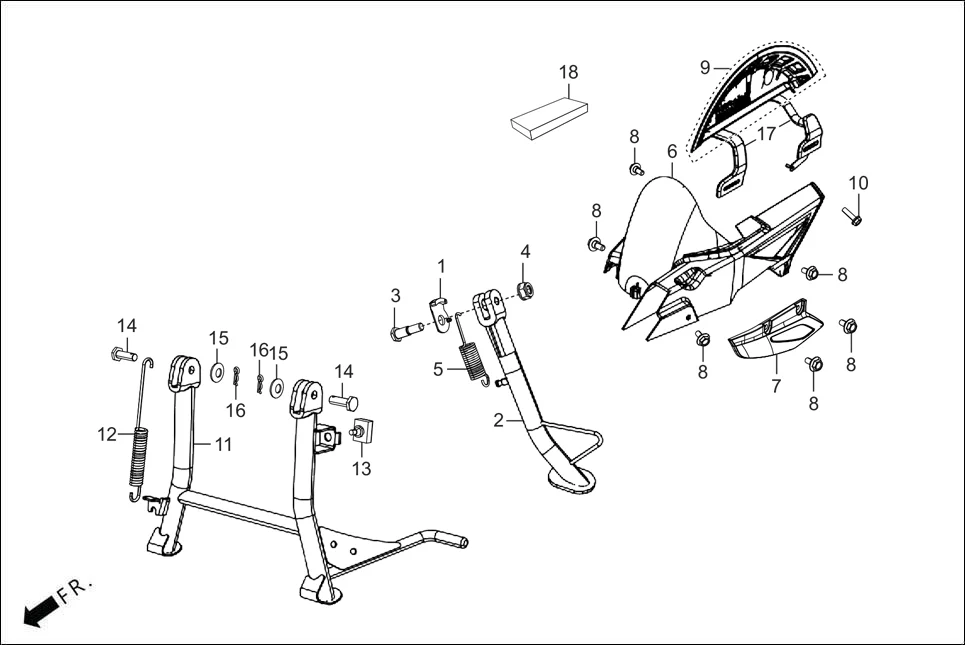

F-19A - CHAIN CASE & STAND
Hero XTREME 125R OBD II(Apr., 2025) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35130-ACD-001 | MAGNET HOLDER ASSY | 1 | |
| 2 | 50530-ACL-000 | BAR COMP SIDE STAND | 1 | |
| 3 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 4 | 90304-KFN-850 | NUT U 10 MM | 1 | |
| 5 | 95014-72102 | SPRING, SIDE STAND | 1 | |
| 6 | 40510-ACL-000 | UPPER CHAIN CASE | 1 | |
| 7 | 40550-ACL-000 | GUARD LOWER FINAL DRIVE | 1 | |
| 8 | 90111-187-000 | BOLT, FLANGE. 6 MM | 6 | |
| 9 | 51104-ACL-0000-20 | WHEEL COVER | 1 | |
| 10 | 95701-06018-00 | BOLT FLANGE 6X18 | 1 | |
| 11 | 50500-ACL-000 | STAND COMP MAIN | 1 | |
| 12 | 95014-ACL-000 | SPRING G MAIN STAND | 1 | |
| 13 | 50505-KTN-700 | RUBBER, A STAND STOPPER | 1 | |
| 14 | 90108-ABZ-000 | SCREW MAIN STAND PIVOT | 2 | |
| 15 | 94101-10000 | WASHER, PLAIN, 10 MM | 2 | |
| 16 | 94252-ABZ-000 | PIN LOCK 10 MM | 2 | |
| 17 | 51104-ACL-0000-21 | BRKT COMPLETE | 1 | |
| 18 | 50345-KTP-950 | CUSHION BATTERY (COVENTIONAL BATTERY) | 1 | |
