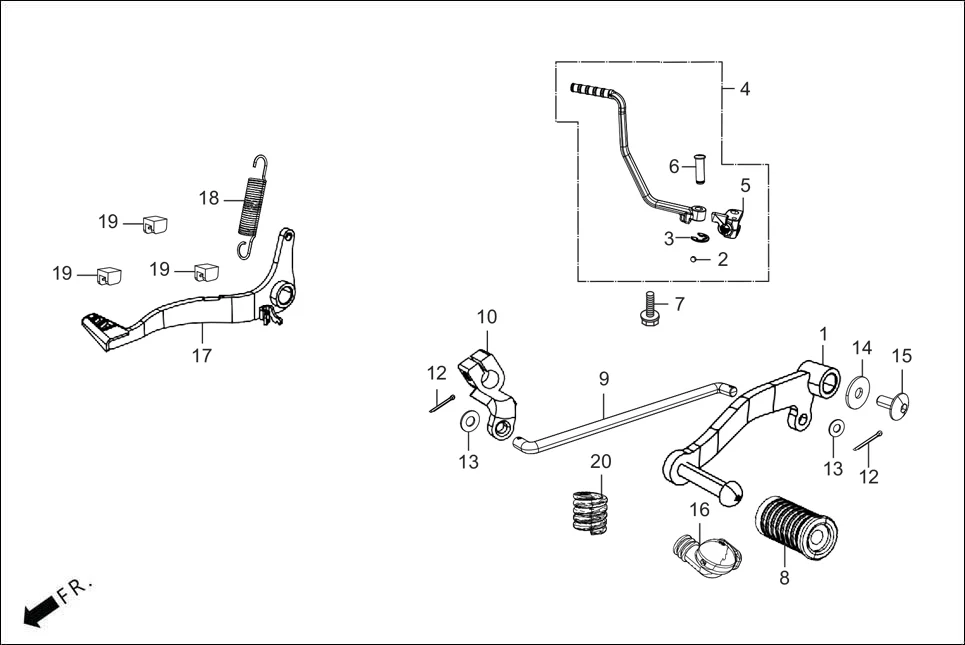

F-18 - KICK STARTER/GEAR CHANGE PEDAL/BRAKE PEDAL
Hero XTREME 125R OBD II(Apr., 2025) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-ACL-000 | PEDAL GEAR CHANGE | 1 | |
| 3 | 28293-KFN-850 | CLIP, KICK STARTER | 1 | |
| 4 | 28300-ACL-000 | ARM ASSY KICK STARTER | 1 | |
| 5 | 28241-ACL-000 | JOINT, KICK ARM | 1 | |
| 6 | 28321-ABZ-000 | PIN KICK STARTER | 1 | |
| 7 | 92101-08032-0A | BOLT HEX., 8 X 32 | 1 | |
| 8 | 24781-KR3-770 | RUBBER, CHANGE PEDAL | 1 | |
| 9 | 24720-ACL-000 | TIE ROD | 1 | |
| 10 | 24711-ACL-000 | ARM GEAR CHANGE | 1 | |
| 13 | 90502-155-000 | WASHER,PLAIN,7MM | 2 | |
| 14 | 94103-06000 | WASHER PLAIN,6MM | 1 | |
| 15 | 90107-ABW-300 | BOLT SPL. 6X14 | 1 | |
| 16 | 24721-GS3-000 | COVER,CHANGE PEDAL | 2 | |
| 17 | 46500-ACL-000 | PEDAL BRAKE | 1 | |
| 18 | 46514-ABZ-000 | SPG. BRAKE PEDAL | 1 | |
| 19 | 46505-ACL-000 | RUBBER STOPPER | 3 | |
| 20 | 28333-KK0-000 | SPRING, KICK STARTER ARM SET | 1 | |
