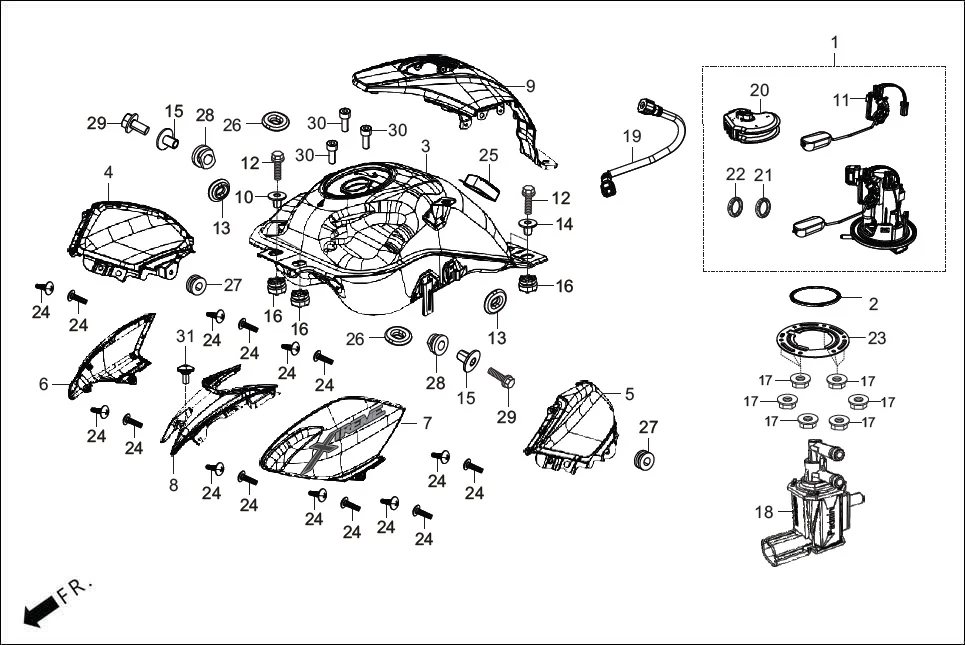

F-13 - FUEL TANK
Hero XTREME 125R OBD II(Apr., 2025) · 39 parts
Parts in This Assembly (39)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16700-ACL-001 | UNIT ASSY FUEL PUMP | 1 | |
| 2 | 17572-AAC-G70 | GASKET FUEL PUMP | 1 | |
| 3 | 17510-ACL-000 | TANK COMP FUEL | 1 | |
| 4 | 83546-ACL-000D | TANK COVER R SIDE (HEAVY GREY) | 1 | |
| 5 | 83646-ACL-000D | TANK COVER L SIDE (HEAVY GREY) | 1 | |
| 6 | 17555-ACL-000A | SET TANK COVER FR RH (BLACK NH-1) | 1 | |
| 6 | 17555-ACL-000B | SET TANK COVER FR RH (SPORTS RED) | 1 | |
| 6 | 17555-ACL-000C | SET TANK COVER FR RH (COCKTAIL BLUE) | 1 | |
| 6 | 17555-ACL-000H | SET TANK COVER FR RH (PEARL RED) | 1 | |
| 6 | 17555-ACL-000G | SET TANK COVER FR RH (ABRAXAS ORANGE) | 1 | |
| 7 | 17565-ACL-000A | SET TANK COVER FR LH (BLACK NH-1) | 1 | |
| 7 | 17565-ACL-000B | SET TANK COVER FR LH (SPORTS RED) | 1 | |
| 7 | 17565-ACL-000C | SET TANK COVER FR LH (COCKTAIL BLUE) | 1 | |
| 7 | 17565-ACL-000H | SET TANK COVER FR LH (PEARL RED) | 1 | |
| 7 | 17565-ACL-000G | SET TANK COVER FR LH (ABRAXAS ORANGE) | 1 | |
| 8 | 83445-ACL-000F | TANK COVER FR CENTRE MATTE BLACK (NH-105) | 1 | |
| 9 | 17530-ACL-000D | TANK COVER TOP (HEAVY GREY) | 1 | |
| 10 | 17312-ABZ-000 | COLLAR FRONT FUEL TANK | 2 | |
| 11 | 37800-ACL-001 | UNIT ASSY FUEL | 1 | |
| 12 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 4 | |
| 13 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 14 | 17313-ABZ-000 | COLLAR REAR FUEL TANK | 2 | |
| 15 | 84706-ABZ-600 | COLLAR TAIL LIGHT MTG | 2 | |
| 16 | 17622-ABZ-000 | GROMMET FUEL TANK | 4 | |
| 17 | 94050-06000 | NUT, FLANGE, 6 MM | 6 | |
| 18 | 17554-AAE-B0099 | PURGE SOLENOID VALVE | 1 | |
| 19 | 17570-ACL-000 | FUEL HOSE | 1 | |
| 20 | 16701-ABZ-002 | FUEL PUMP FILTER | 1 | |
| 21 | 16702-ABZ-002 | FUEL PUMP O RING | 1 | |
| 22 | 16702-ABZ-003 | FUEL PUMP O RING | 1 | |
| 23 | 17507-AAN-B00 | PLATE SETTING | 1 | |
| 24 | 93903-34380 | SCREW, TAPPING, 4X12 | 16 | |
| 25 | 83408-ACL-000 | DAMPER TANK COVER | 1 | |
| 26 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 27 | 64316-KVN-900 | RUBBER, FR., COWL MT | 2 | |
| 28 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 2 | |
| 29 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 30 | 96600-05024-01 | SOCKET BOLT 5X24 | 3 | |
| 31 | 90001-ACL-000 | SOCKET BOLT SPL M5X11.5 | 1 | |
