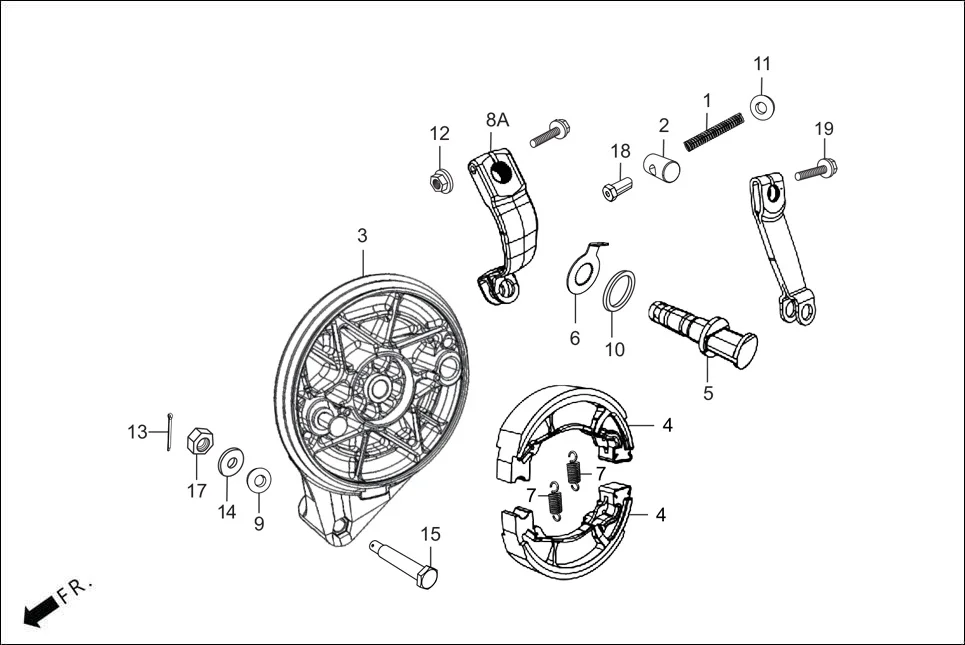

F-10-CBS - REAR BRAKE PANEL
Hero XTREME 125R OBD II(Apr., 2025) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43456-KSP-900 | SPRING BRAKE ROD | 1 | |
| 2 | 43455-KSP-900 | JOINT BRAKE ARM | 1 | |
| 3 | 43100-AAP-000 | PANEL COMP RR BRAKE | 1 | |
| 4 | 45125-AAH-F0099 | SHOE COMP BRAKE | 2 | |
| 5 | 43141-KTC-900 | CAM, REAR BRAKE | 1 | |
| 6 | 45145-KFM-900 | INDICATOR, FR. BRK | 1 | |
| 7 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 8 | 43410-ACL-000 | ARM REAR BRAKE | 1 | |
| 9 | 43434-ME1-670 | RUBBER, STOPPER ARM | 1 | |
| 10 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 11 | 90502-KRY-930 | WASHER , BRAKE ROD | 1 | |
| 12 | 90301-473-000 | NUT,U 6MM | 1 | |
| 13 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 14 | 90505-425-000 | WASHER, 8 MM | 1 | |
| 15 | 92811-AAP-000 | BOLT A, BRAKE STOPPER | 1 | |
| 17 | 94001-08000-0S | NUT, HEX., 8 MM | 1 | |
| 18 | 43459-ACL-D10 | NUT BRK ROD ADJUST | 1 | |
| 19 | 96001-06025-00 | BOLT, FLANGE, SH. 6 X 25 | 1 | |
