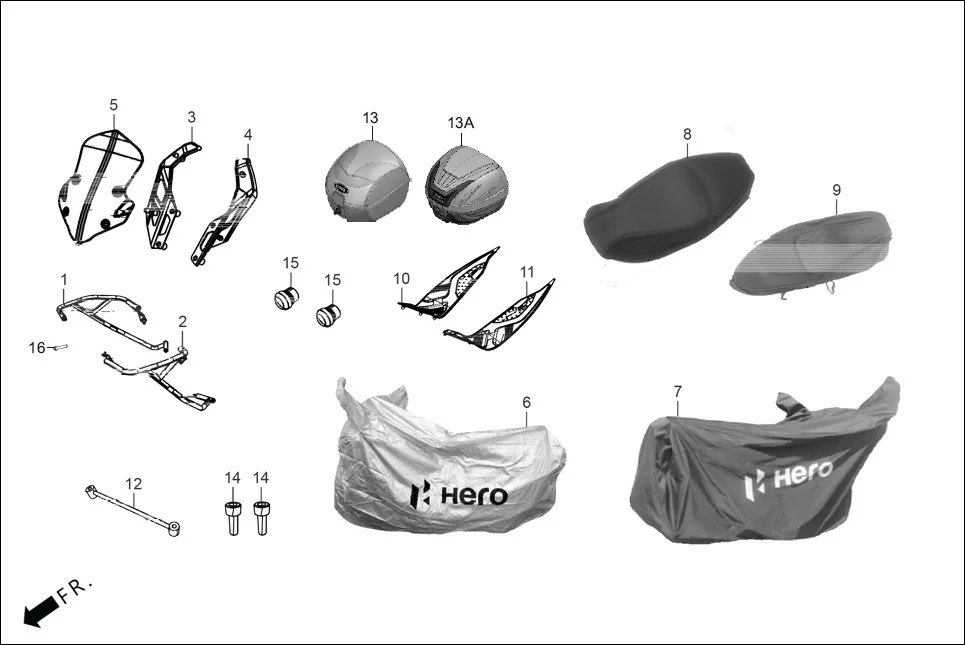

FOP-2 - (OPTIONAL)
Hero XOOM 160(Aug., 2025) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 3 | 64141-ABR-001 | STAY SCREEN WIND R COMP | 1 | |
| 4 | 64142-ABR-001 | STAY SCREEN WIND L COMP | 1 | |
| 5 | 53204-ABR-001 | VISOR SPEEDOMETER | 1 | |
| 6 | 99660-ABR-000 | BASIC BODY COVER | 1 | |
| 7 | 99660-ABR-001 | BASIC BODY COVER | 1 | |
| 8 | 99630-ABR-001 | COVER ASSY SEAT | 1 | |
| 9 | 99631-ABR-001 | COVER ASSY SEAT | 1 | |
| 10 | 99615-ABR-000 | FLOOR MAT R | 1 | |
| 11 | 99616-ABR-000 | FLOOR MAT L | 1 | |
| 12 | 64143-ABR-001 | BRIDGE STAY WINDSCREEN COMP | 1 | |
| 13 | 99770-ZZZ-0001-20 | TOP CASE 23 STUDDS RED BOX | 1 | |
| 13 | 99770-ZZZ-0002-20 | TOP ASSY 29 STUDDS RED BOX | 1 | |
| 14 | 96700-06018-00 | SOCKET, BOLT, 6 X 18 | 2 | |
| 15 | 84103-AAL-D00 | CAP CARRIER RR. | 1 | |
| 16 | SFBLFH026G | BOLT FLANGE HEX M6X1.0X50X8.8_AA | 1 | |
