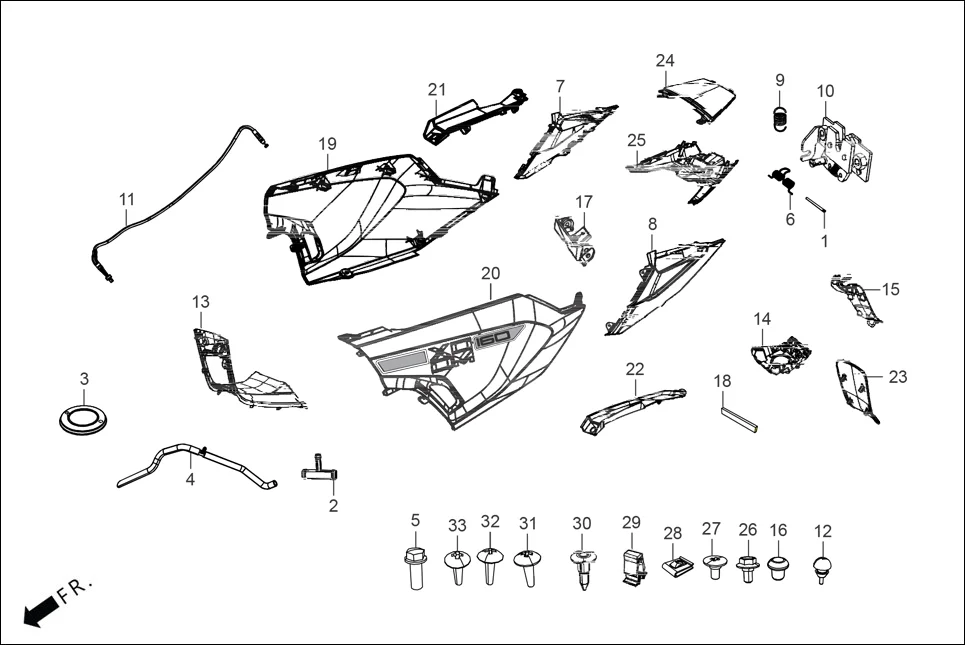

F-8 - BODY COVER
Hero XOOM 160(Aug., 2025) · 39 parts
Parts in This Assembly (39)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15543-ABR-000 | FUEL LID AXLE | 1 | |
| 2 | 17230-AAN-410 | JOINT 3 WAY,DRAIN | 1 | |
| 3 | 17505-AAL-C00 | TRAY, FUEL | 1 | |
| 4 | 1751A-ABR-000 | TRAY FUEL DRAIN SUB ASSY | 1 | |
| 5 | 96001-06016-07 | BOLT, FLANGE, SH. 6 X 16 | 2 | |
| 6 | 17544-ABR-000 | FUEL LID SPRING | 1 | |
| 7 | 50460-ABR-000 | GRIP INNER R RR | 1 | |
| 8 | 50470-ABR-000 | GRIP INNER L RR | 1 | |
| 9 | 77234-AAW-000 | SPRING | 1 | |
| 10 | 77235-AAW-000 | CATCH FUEL LID | 1 | |
| 11 | 77244-ABR-000 | FUEL LID COVER CATCH CABLE | 1 | |
| 12 | 80145-AAW-000 | RUBBER STOPPER | 2 | |
| 13 | 80151-ABR-000 | COVER CENTER | 1 | |
| 14 | 8015B-ABR-000 | TRAY FUEL SUB ASSY | 1 | |
| 15 | 80156-ABR-000 | LID FUEL INNER SUB ASSY | 1 | |
| 16 | 80158-AAW-000 | RUBBER BUSH TRAY FUEL | 2 | |
| 17 | 80159-ABR-000 | SPRING LID HOLDER | 1 | |
| 18 | 83401-ABR-000 | FOAM FUEL LID | 1 | |
| 19 | 83500-ABR-000R | SET BODY COVER RH (CANDY BLAZING RED) | 1 | |
| 19 | 83500-ABR-000S | SET BODY COVER RH (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 19 | 83500-ABR-000T | SET BODY COVER RH (METALLIC MATTE GUN METAL) | 1 | |
| 19 | 83500-ABR-000U | SET BODY COVER RH (MATTE TOUGH GREEN) | 1 | |
| 20 | 83600-ABR-000R | SET BODY COVER LH (CANDY BLAZING RED) | 1 | |
| 20 | 83600-ABR-000S | SET BODY COVER LH (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 20 | 83600-ABR-000T | SET BODY COVER LH(METALLIC MATTE GUN METAL) | 1 | |
| 20 | 83600-ABR-000U | SET BODY COVER LH (MATTE TOUGH GREEN) | 1 | |
| 21 | 83532-ABR-000 | INNER SIDE COVER R | 1 | |
| 22 | 83533-ABR-000 | INNER SIDE COVER L | 1 | |
| 23 | 83701-ABR-000 | LID FUEL | 1 | |
| 24 | 83750-ABR-000 | COVER REAR CENTER | 1 | |
| 25 | 83751-ABR-000 | COVER RR CENTER LOWER | 1 | |
| 26 | 90111-KPL-900 | BOLT, INNER COVER | 4 | |
| 27 | 90113-AAW-000 | BOLT SPECIAL HEX.6X14 | 2 | |
| 28 | 90344-AAW-000 | NUT CLIP 5MM | 10 | |
| 29 | 90666-AAB-000 | CLIP SNAP FIT | 2 | |
| 30 | 90683-AAW-300 | CLIP TRIM. | 2 | |
| 31 | 93903-25380 | SCREW TAPPING 5X16 | 12 | |
| 32 | 93903-34310 | SCREW TAPPING M4X12 | 7 | |
| 33 | 93903-35380 | SCREW TAPPING 5X16 | 10 | |
