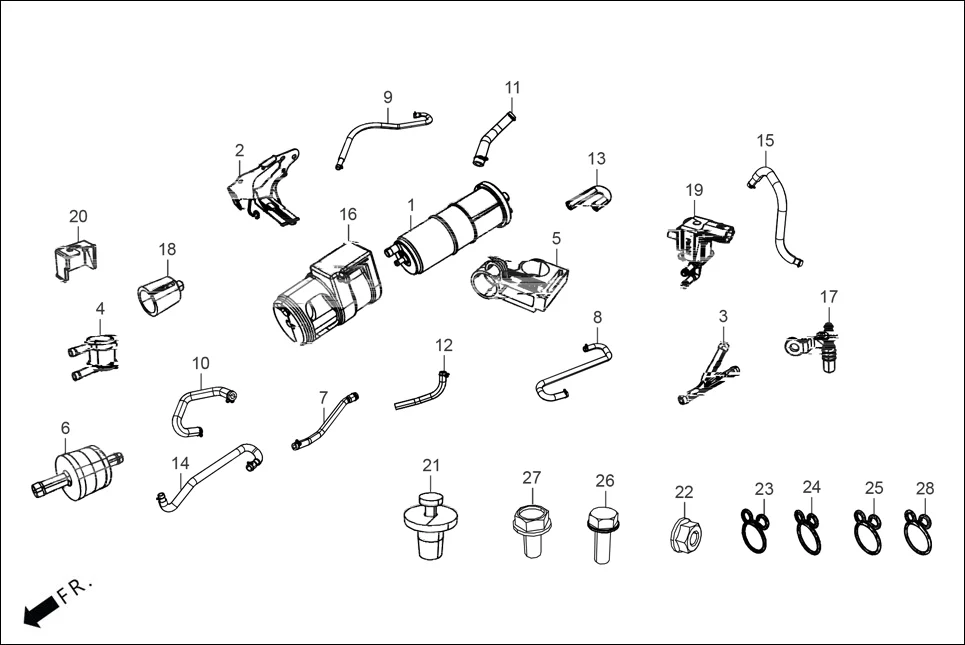

F-13A-CANISTER/TUBES
HeroXOOM 160(Aug., 2025) · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAW-B0099 | CANISTER COMP | 1 | |
| 2 | 17300-ABR-000 | CANISTER STAY COMP | 1 | |
| 3 | 17230-AAH-100 | JOINT 3 WAY | 1 | |
| 4 | 17420-AAD-A00 | ROLL OVER VALVE | 1 | |
| 5 | 17422-ABR-000 | STAY RUBBER EVAPO VALVE | 1 | |
| 6 | 17430-AAE-100 | ONE WAY VALVE | 1 | |
| 7 | 1769E-ABR-000 | TUBE 3WAY FUEL TANK SUB ASSY | 1 | |
| 8 | 1769A-ABR-000 | TUBE ROLLOVER CANISTER SUB ASSY | 1 | |
| 9 | 1769B-ABR-000 | TUBE CANISTER PURGE SUB ASSY | 1 | |
| 10 | 1769D-ABR-000 | TUBE ROLL OVER 3 WAY JOINT SUB ASSY | 1 | |
| 11 | 1769F-ABR-000 | TUBE ONE WAY 3 WAY JOINT SUB ASSY | 1 | |
| 12 | 1769H-ABR-000 | TUBE CANISTER DRAIN SUB ASSY | 1 | |
| 13 | 17697-AAN-410 | TUBE ONE WAY VALVE | 1 | |
| 14 | 1769C-ABR-000 | HOSE CANISTER SNORKEL SUB ASSY | 1 | |
| 15 | 1769J-ABR-000 | TUBE PURGE VALVE SUB ASSY | 1 | |
| 16 | 17411-ABR-000 | SUSP CANISTER | 1 | |
| 17 | 17414-AAL-900 | SNORKEL CANISTER A | 1 | |
| 18 | 17415-AAL-900 | SNORKEL CANISTER B | 1 | |
| 19 | 17554-AAG-A01 | PURGE SOLENOID VALVE | 1 | |
| 20 | ABRAB4U001000G | COVER SEAT LOCK CABLE | 1 | |
| 21 | 90683-AAB-D00 | CLIP TRIM | 1 | |
| 22 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 23 | 95002-02080 | CLIP, TUBE | 9 | |
| 24 | 95002-02100 | CLIP, B-10 TUBE | 3 | |
| 25 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 26 | 95004-AAL-900 | CLIP TUBE | 3 | |
| 27 | 90002-AAL-900 | BOLT FLANGE 5X14 | 1 | |
| 28 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 |
