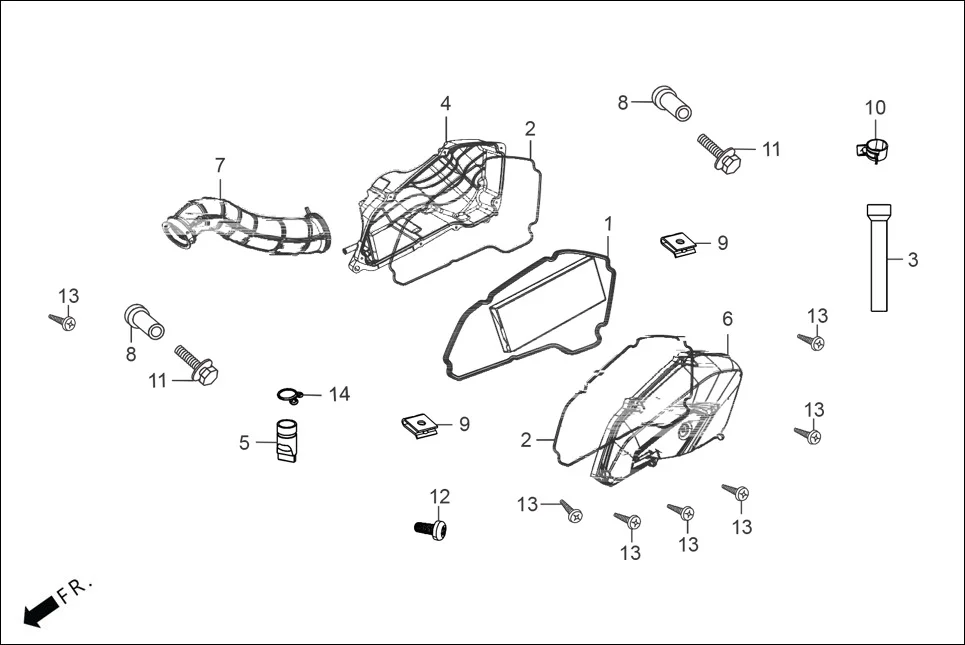

F-15 - AIR CLEANER
Hero XOOM 160(Aug., 2025) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17208-ABR-000 | HOLDER COMP. ELEMENT | 1 | |
| 2 | 95018-AAW-B00 | BAND 46 AIR/C CONN TUBE | 1 | |
| 3 | 17216-KTP-900 | TUBE, DRAIN | 1 | |
| 4 | 17225-ABR-000 | CASE SUB ASSY. AIR/C | 1 | |
| 5 | 17234-KCC-940 | TUBE AIR CLEANER DRAIN | 1 | |
| 6 | 17235-ABR-000 | COVER SUB ASSY. AIR/C | 1 | |
| 7 | 17253-ABR-000 | TUBE. AIR/C CONN | 1 | |
| 8 | 50731-KV3-770 | COLLAR, PILLION STEP SET | 2 | |
| 9 | 90320-GC3-000 | NUT, SPRING, M5 | 2 | |
| 10 | 90602-KPL-900 | CLAMP, D12 TUBE | 1 | |
| 11 | 93404-06040-07 | BOLT, WASH, 6 X 40 | 2 | |
| 12 | 93500-04032-0G | SCREW, PAN, 4 X 32 | 1 | |
| 13 | 93903-25480 | SCREW TAPPING 5X20 | 7 | |
| 14 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
