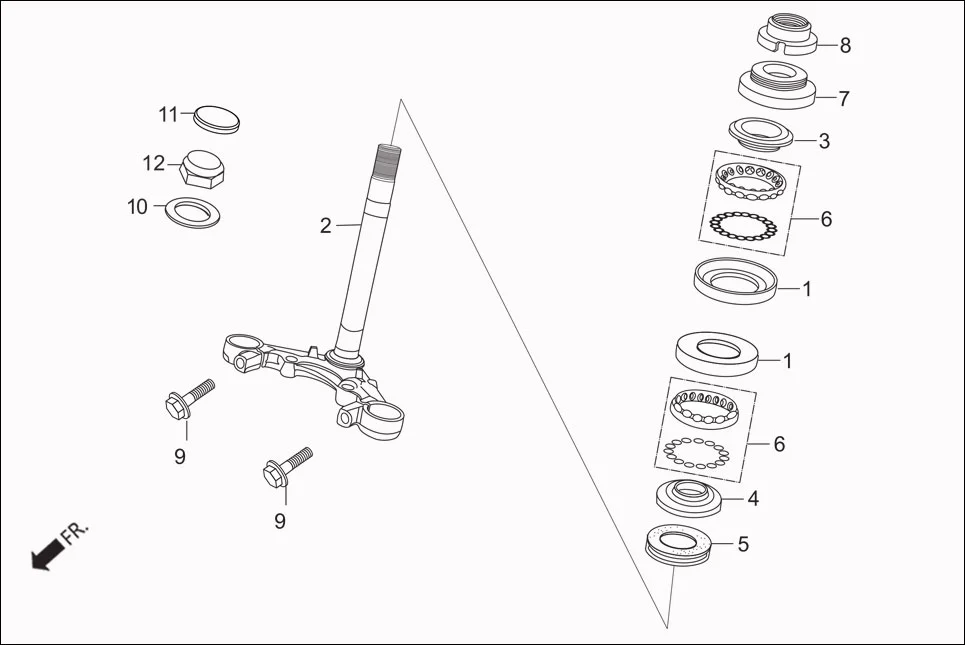

F-5A - FRONT CUSHION (STEERING STEM)
Hero Passion Pro iBS (Feb, 2019) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50301-KTR-900 | RACE, STEERING BALL | 2 | |
| 2 | 53200-AAH-F00 | STEM, COMP., STEERING | 1 | |
| 3 | 53211-268-010 | RACE, STEERING TOP CONE | 1 | |
| 4 | 53212-200-000 | RACE, STEERING BOTTOM CONE | 1 | |
| 5 | 53214-200-000 | DUST SEAL, STEERING HEAD | 1 | |
| 6 | 53215-KTR-900 | BALL, ASSY. STEERING | 2 | |
| 7 | 53221-KTR-900 | THREAD, STEERING HEAD TOP | 1 | |
| 8 | 53222-KTR-900 | MUD GUARD, STEERING HEAD TOP | 1 | |
| 9 | 95701-08040-00 | BOLT, FLANGE, 8 X 40 | 2 | |
| 10 | 90503-KTR-900 | WASHER, STEERING STEM | 1 | |
| 11 | 53208-AAH-000 | CAP STRG. STEM | 1 | |
| 12 | 90304-AAH-000 | NUT STRG. STEM | 1 | |
