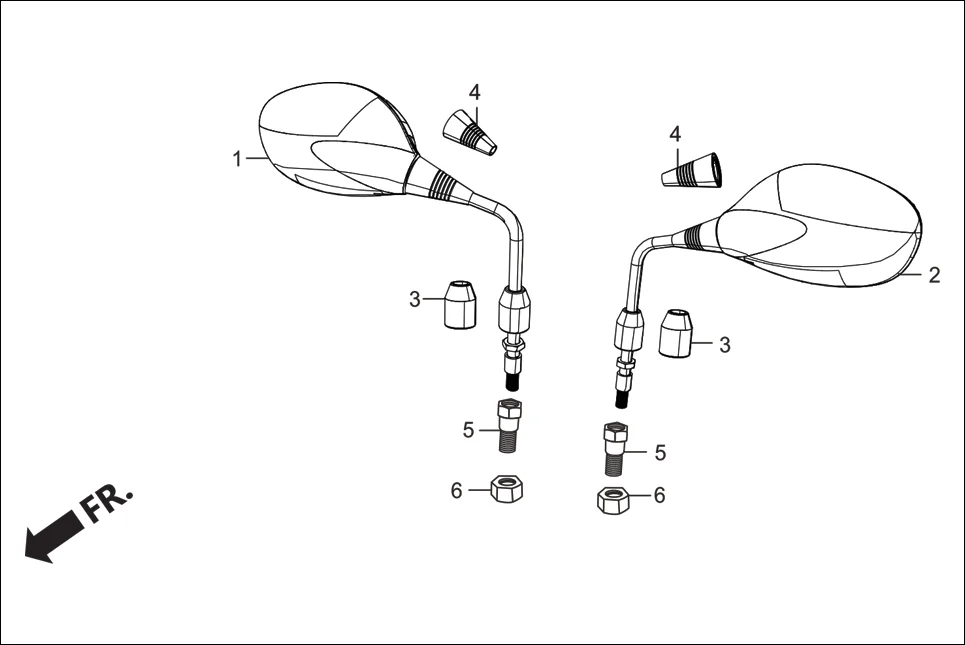

F-3C - BACK MIRROR
Hero Passion Pro iBS (Feb, 2019) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 88110-AAT-000R | MIRROR ASSY R BACK (SPORTS RED) | 1 | |
| 1 | 88110-AAT-000S | MIRROR ASSY R BACK (FORCE SILVER ME.) | 1 | |
| 1 | 88110-AAT-000T | MIRROR ASSY R BACK (FROST BLUE ME.) | 1 | |
| 1 | 88110-AAN-H01ZA | MIRROR ASSY R BACK(BLACK, NH-1) | 1 | |
| 1 | 88110-AAT-000V | MIRROR ASSY R BACK (HEAVY GRAY ME.)(T1) | 1 | |
| 2 | 88120-AAT-000R | MIRROR ASSY L BACK (SPORTS RED) | 1 | |
| 2 | 88120-AAT-000S | MIRROR ASSY L BACK (FORCE SILVER ME.) | 1 | |
| 2 | 88120-AAT-000T | MIRROR ASSY L BACK (FROST BLUE ME.) | 1 | |
| 2 | 88120-AAN-H01ZA | MIRROR ASSY L BACK(BLACK, NH-1) | 1 | |
| 2 | 88120-AAT-000V | MIRROR ASSY L BACK (HEAVY GRAY ME.)(T1) | 1 | |
| 3 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 4 | 88115-KTR-900 | BOOT, MIRROR UPPER | 2 | |
| 5 | 90003-KCC-840 | BOLT, ADPT.10MM | 2 | |
| 6 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
