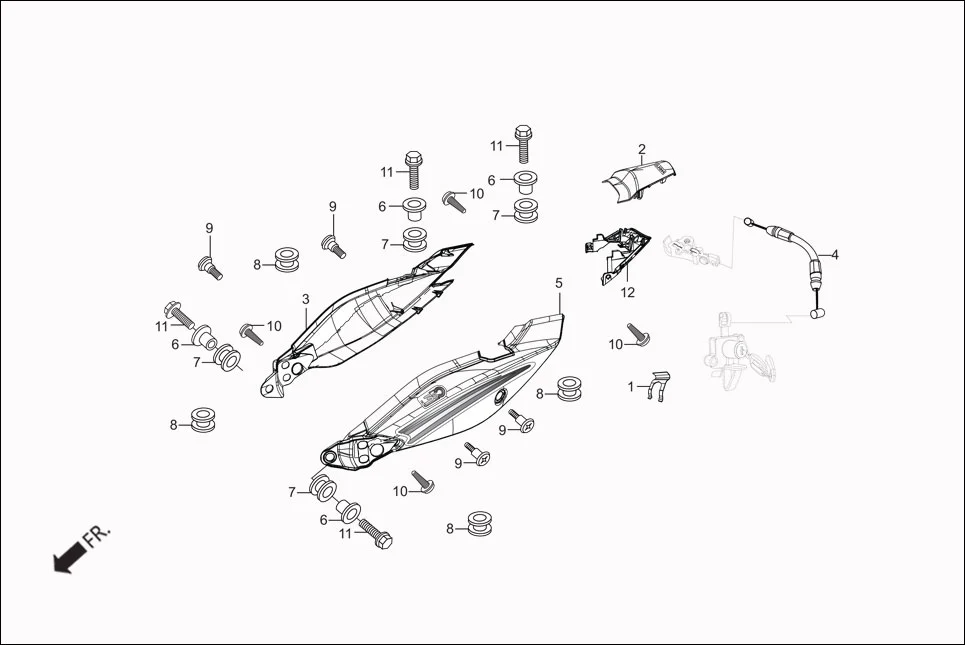

F-10 - BODY COVER ( REAR COWL)
Hero Passion Pro iBS (Feb, 2019) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 2 | 77237-AAT-000S | SET CENTER RR COWL | 1 | |
| 3 | 77240-AAT-000R | SET R SIDE COWL (SPORTS RED) | 1 | |
| 3 | 77240-AAT-000S | SET R SIDE COWL (FORCE SILVER ME.) | 1 | |
| 3 | 77240-AAT-000T | SET R SIDE COWL (FROST BLUE ME.) | 1 | |
| 3 | 77240-AAT-000U | SET R SIDE COWL (BLACK NH-1) | 1 | |
| 3 | 77240-AAT-000V | SET R SIDE COWL (HEAVY GRAY ME.) (T1) | 1 | |
| 4 | 77244-AAB-000 | STAY SEAT LOCK CABLE | 1 | |
| 5 | 77250-AAT-000R | SET L SIDE COWL (SPORTS RED) | 1 | |
| 5 | 77250-AAT-000S | SET L SIDE COWL (FORCE SILVER ME.) | 1 | |
| 5 | 77250-AAT-000T | SET L SIDE COWL (FROST BLUE ME.) | 1 | |
| 5 | 77250-AAT-000U | SET L SIDE COWL (BLACK NH-1) | 1 | |
| 5 | 77250-AAT-000V | SET L SIDE COWL (HEAVY GRAY ME.) (T1) | 1 | |
| 6 | 80111-KVN-900 | COLLAR, RR. FENDER | 4 | |
| 7 | 80112-KVN-900 | RUBBER, RR FENDER | 4 | |
| 8 | 83551-KVH-900 | GROMMET SIDE COVER | 4 | |
| 10 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 4 | |
| 12 | 77210-AAT-000 | COWL RR UNDER | 1 | |
