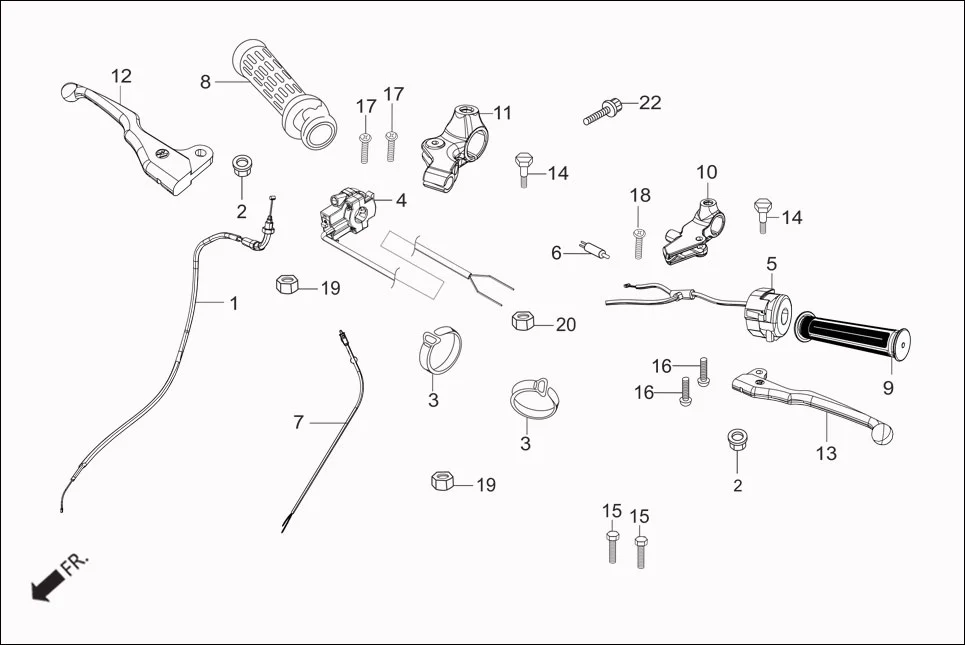

F-3 - HNDL.& HNDL.COVER (HANDLE LEVER/SWITCH/CONTROL CABLE)
Hero Passion Pro iBS (Feb, 2019) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-ABA-000 | CABLE COMP, THROTTLE | 1 | |
| 2 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 3 | 32161-404-000 | BAND B-1,WIRE | 2 | |
| 4 | 35150-AAC-00099 | SW ASSY START & I3S | 1 | |
| 5 | 35200-AAT-011 | SW ASSY. WINKER | 1 | |
| 6 | 35330-413-003 | SW. COMP., FR. LEVER | 1 | |
| 7 | 35340-KST-950 | SWITCH ASSY., FR. STOP | 1 | |
| 8 | 53140-KTC-900 | GRIP COMP. , R HANDLE | 1 | |
| 9 | 53166-KTC-900 | GRIP L HANDLE | 1 | |
| 10 | 53172-KTC-920 | BRACKET, L HANDLE LEVER | 1 | |
| 11 | 53173-KTR-A20 | BRACKET., R. HANDLE LEVER | 1 | |
| 12 | 53175-AAF-H00 | LEVER COMP.R STRG.HNDL. | 1 | |
| 13 | 53178-AAF-H00 | LEVER COMP.L STRG.HNDL. | 1 | |
| 14 | 90114-310-000 | BOLT, HANDLE LEVER PIVOT | 2 | |
| 15 | 92101-06025-0G | BOLT, HEX 6 X 25 | 2 | |
| 16 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
| 17 | 93500-05022-1G | SCREW, PAN, 5 X 22 | 2 | |
| 18 | 93901-32220 | SCREW TAPPING 3X10 | 1 | |
| 19 | 94001-05070-0S | NUT HEX. 5MM | 2 | |
| 20 | 94002-10070-0S | NUT, HEX., 10MM | 1 | |
