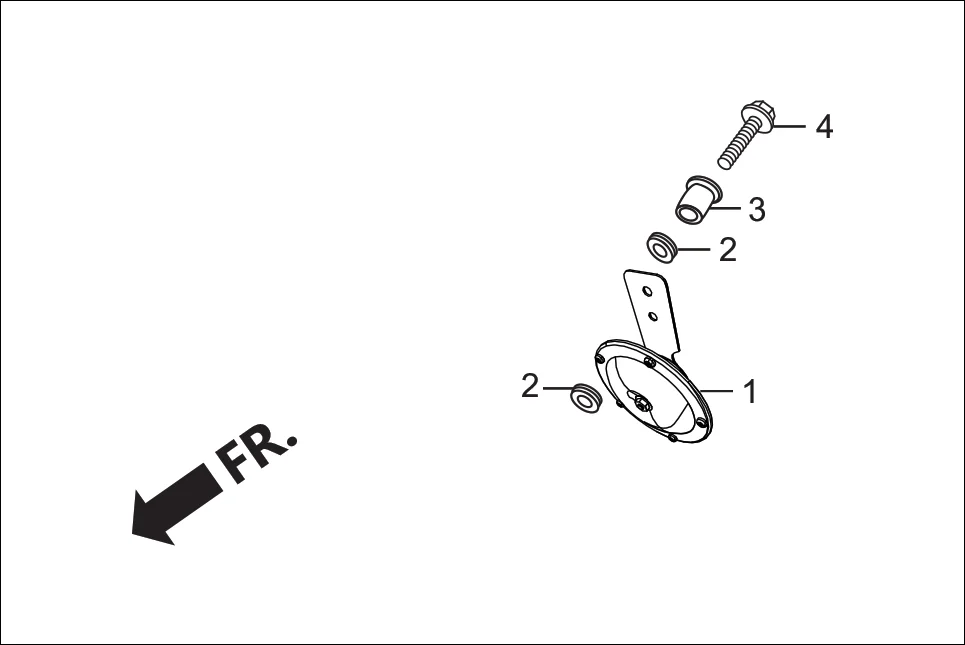

F-22B - HORN
Hero Passion Pro iBS (Feb, 2019) · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 38110-AAN-H01 | HORN COMP. | 1 | |
| 2 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 3 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 4 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
