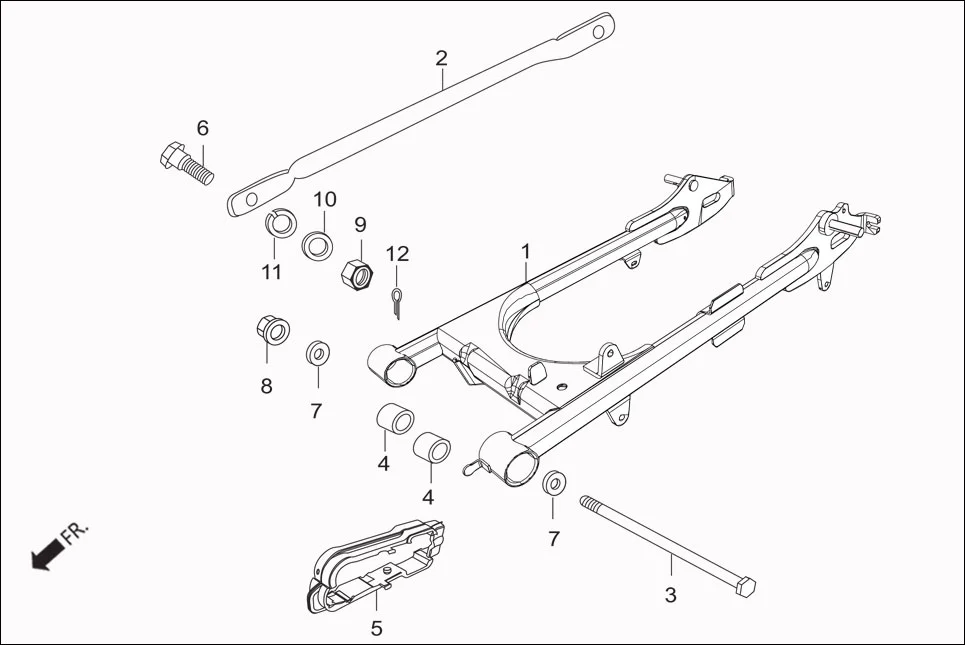

F-17A - REAR.CUSHION (SWINGARM COMP ASSY.)
Hero Passion Pro iBS (Feb, 2019) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52110-AAJ-700 | SWINGARM COMP REAR | 1 | |
| 2 | 43431-AAH-F00 | ARM, RR. BRAKE STOPPER | 1 | |
| 3 | 52101-KST-940 | BOLT, SWING ARM PIVOT | 1 | |
| 4 | 52147-KTC-900 | RUBBER BUSH, RR. FORK PIVOT | 2 | |
| 5 | 52170-KST-940 | SLIDER CHAIN | 1 | |
| 6 | 90133-331-770 | BOLT, HEX., 8MM | 1 | |
| 7 | 90183-KTC-900 | WASHER, SPL., 12 MM | 2 | |
| 11 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
