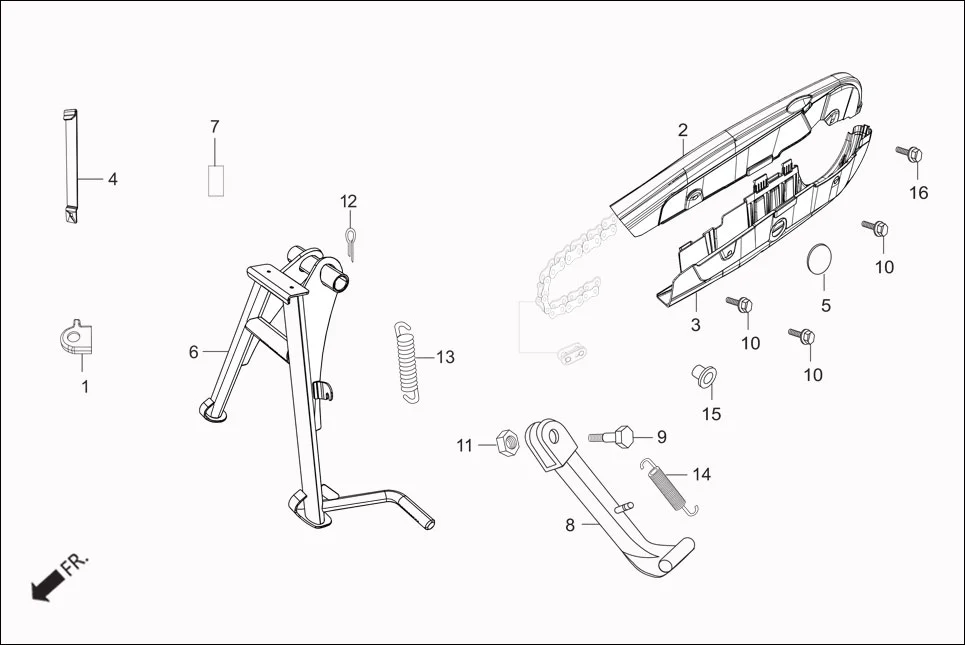

F-16 - CHAIN CASE & STAND
Hero Passion Pro iBS (Feb, 2019) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35130-AAD-00099 | MAGNET HOLDER | 1 | |
| 2 | 40510-AAT-000 | CHAIN CASE UPPER | 1 | |
| 3 | 40520-AAT-000 | CHAIN CASE LOWER | 1 | |
| 4 | 40524-AAT-000 | PLATE CHAIN CASE LOWER | 1 | |
| 5 | 40545-ABA-000 | CAP, CHAIN PEEP HOLE | 1 | |
| 6 | 50500-AAT-000 | STAND COMP MAIN | 1 | |
| 7 | 50512-AAH-F00 | PIPE, RR. BRAKE PIVOT | 1 | |
| 8 | 50530-KST-940 | BAR COMP., SIDE STAND | 1 | |
| 9 | 90107-AAD-000 | SCREW, SIDE STAND PIVOT | 1 | |
| 10 | 90111-ABA-000 | BOLT, FLANGE, 6MM | 3 | |
| 11 | 94030-10000 | NUT HEX., 10MM | 1 | |
| 12 | 94201-30250 | PIN, SPLIT, 3.0 X 25 | 1 | |
| 13 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 14 | 95014-72302 | SPRING, C SIDE STAND | 1 | |
| 15 | 90501-AAT-000 | COLLAR CHAIN CASE | 1 | |
| 16 | 95701-06010-07 | BOLT, FLANGE, 6 X 10 | 1 | |
