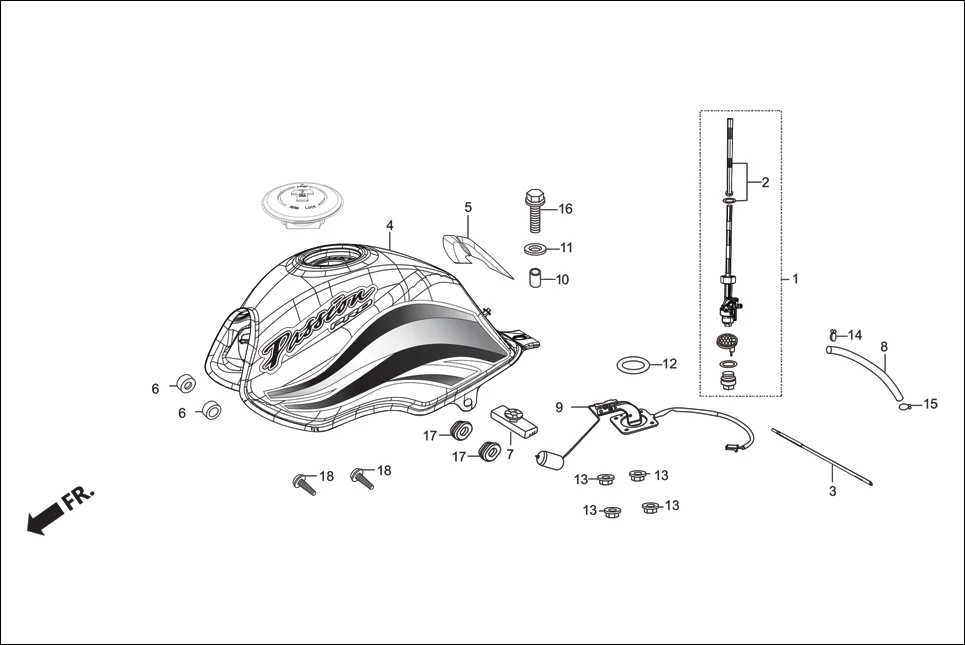

F-11 - FUEL TANK
Hero Passion Pro iBS (Feb, 2019) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16950-AAT-001 | COCK ASSY. FUEL | 1 | |
| 2 | 16952-AAT-000 | SET FUEL STRAINER SCREEN | 1 | |
| 3 | 17199-AAT-000 | TUBE DRAIN | 1 | |
| 4 | 17500-AAT-000R | SET FUEL TANK (SPORTS RED) | 1 | |
| 4 | 17500-AAT-000S | SET FUEL TANK (FORCE SILVER ME.) | 1 | |
| 4 | 17500-AAT-000T | SET FUEL TANK (FROST BLUE ME.) | 1 | |
| 4 | 17500-AAT-000U | SET FUEL TANK (BLACK NH-1) | 1 | |
| 4 | 17500-AAT-000V | SET FUEL TANK (HEAVY GRAY ME.)(TYPE-1) | 1 | |
| 5 | 17506-AAT-000 | TANK FILM PROTECTOR | 1 | |
| 6 | 17611-KFN-850 | CUSHION, FR. FUEL TANK | 2 | |
| 7 | 17613-KCC-900 | CUSHION, RR. TANK | 1 | |
| 8 | 17681-KWH-970 | TUBE,FUEL | 1 | |
| 9 | 37800-AAT-00099 | UNIT ASSY FUEL | 1 | |
| 10 | 90324-KCC-900 | COLLAR, 8 MM | 1 | |
| 11 | 90325-KCC-900 | WASHER, PLAIN, 8 MM | 1 | |
| 12 | 91305-MC7-000 | O-RING, 39.5 X 5 | 1 | |
| 14 | 95002-02080 | CLIP, TUBE | 1 | |
| 15 | 95002-02100 | CLIP, B-10 TUBE | 1 | |
| 16 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
| 17 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 18 | 93891-04012-07 | SCREW WASH 4X12 | 2 | |
