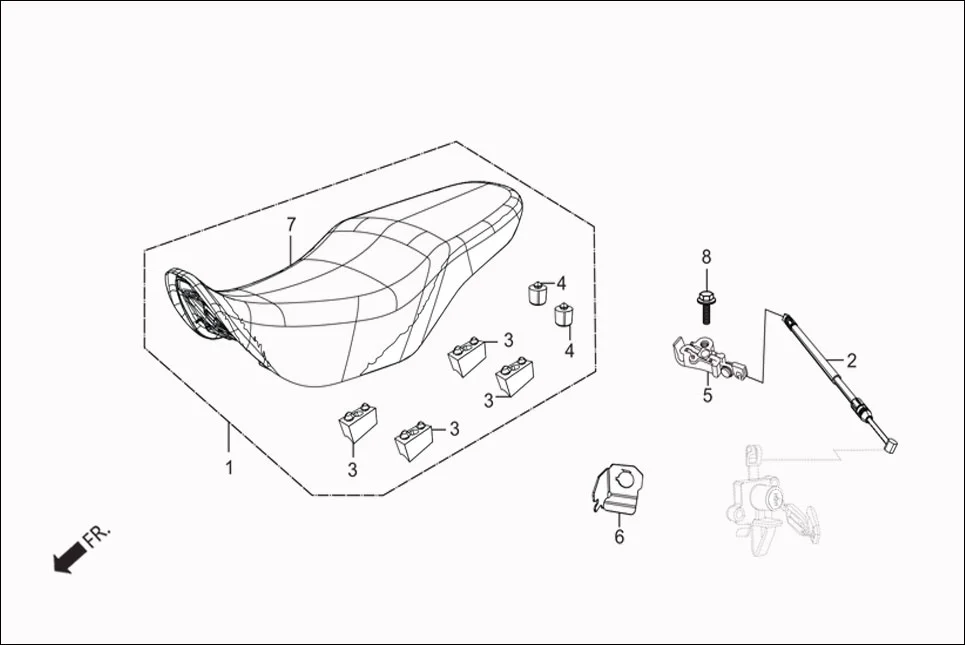

F-10A - SEAT ASSY
Hero Passion Pro iBS (Feb, 2019) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77200-AAT-000 | SEAT COMP., DOUBLE | 1 | |
| 2 | 77156-AAT-000 | CABLE, SEAT LOCK | 1 | |
| 3 | 77204-KCC-900 | RUBBER, `A SEAT SETTING | 4 | |
| 4 | 77206-KCC-900 | RUBBER, SEAT CUSHION | 2 | |
| 5 | 77221-KVE-860 | HOOK SEAT CATCH | 1 | |
| 7 | 7720B-AAT-000 | COVER SEAT ASSY | 1 | |
