FOP-4 - MAGNET HOLDER ASSY./SIDE STAND (OPTIONAL)

Hero Maestro EDGE (Apr, 2017) · 7 parts

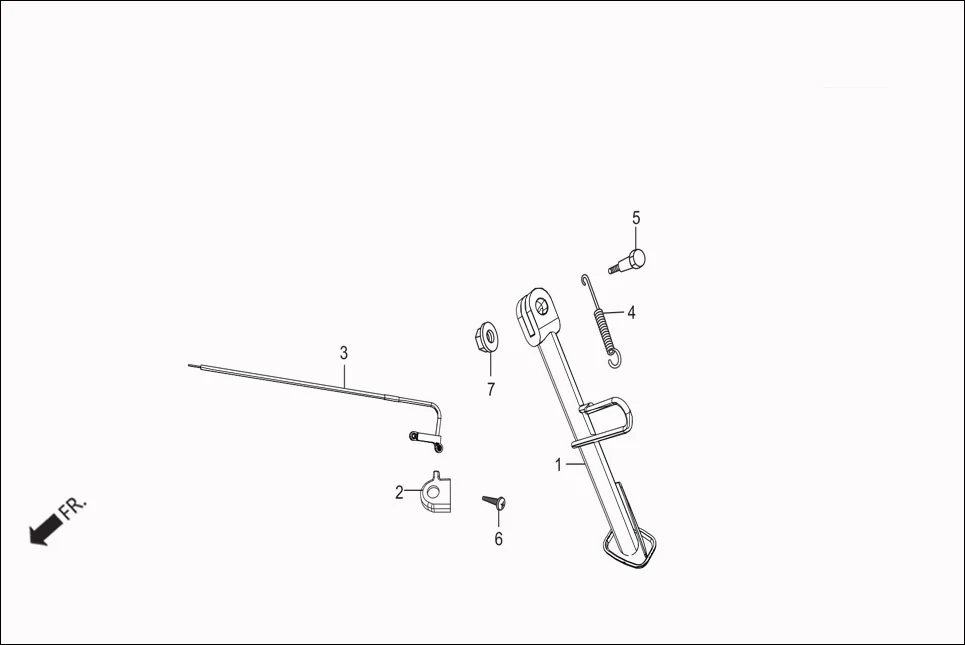

FOP-4 MAGNET HOLDER ASSY./SIDE STAND (OPTIONAL) assembly diagram for Hero Maestro EDGE (Apr, 2017)

Parts in This Assembly (7)

Ref # Part Number Description Qty
1 50530-AAW-000 BAR COMP. SIDE STAND 1
2 35130-AAD-00099 MAGNET HOLDER 1
3 35140-AAD-00099 SENSOR ASSY SIDE STAND 1
4 50536-KPL-900 SPG. SIDE SET 1
5 90107-AAB-000 SCREW SIDE STAND PIVOT 1
6 93891-05014-18 SCREW, WASHER, 5 X 14 1
7 90304-KCS-920 NUT`U 10 MM 1
