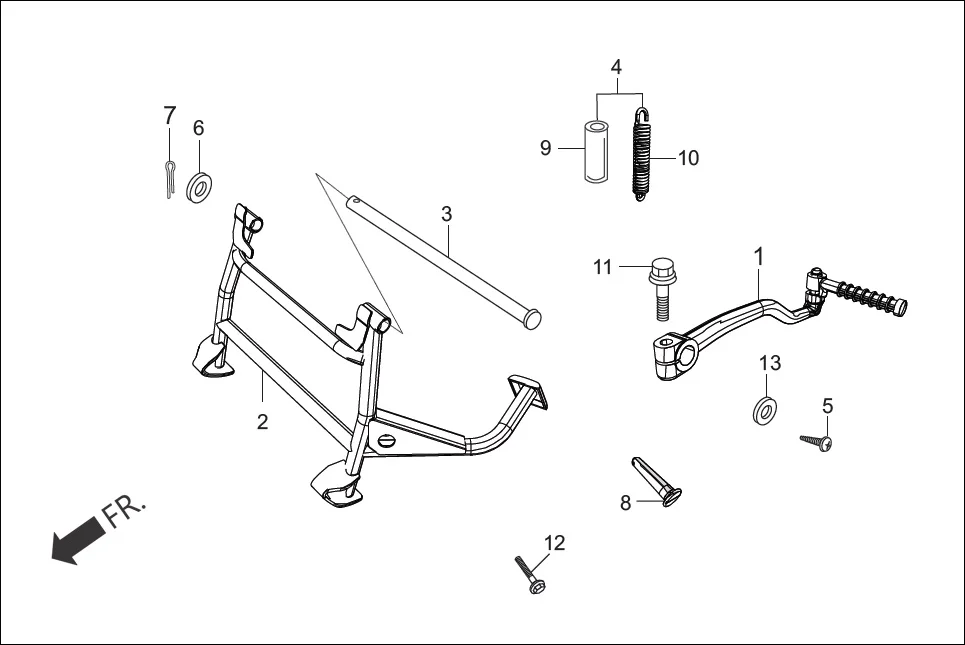

F-17 - ARM KICK START/MAIN STAND/SIDE STAND
Hero Maestro EDGE (Apr, 2017) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 28300-AAL-400 | ARM ASSY KICK STARTER | 1 | |
| 2 | 50500-AAW-B00 | STAND COMP. MAIN ASSY | 1 | |
| 3 | 50503-GCC-000 | SHAFT, MAIN STAND | 1 | |
| 4 | 50505-GCC-000 | SPG.ASSY., MAIN STAND | 1 | |
| 5 | 93891-05014-18 | SCREW, WASHER, 5 X 14 | 1 | |
| 8 | 94201-AAW-000 | PIN STEP PILLION | 1 | |
| 9 | 95005-14070-30 | TUBE, 14X70 | 1 | |
| 10 | 95014-71202 | SPRING B., MAIN STAND | 1 | |
| 11 | 95701-08025-07 | BOLT FLANGE 8X25 | 1 | |
| 13 | 94103-04800 | WASHER PLAIN 4MM | 1 | |
