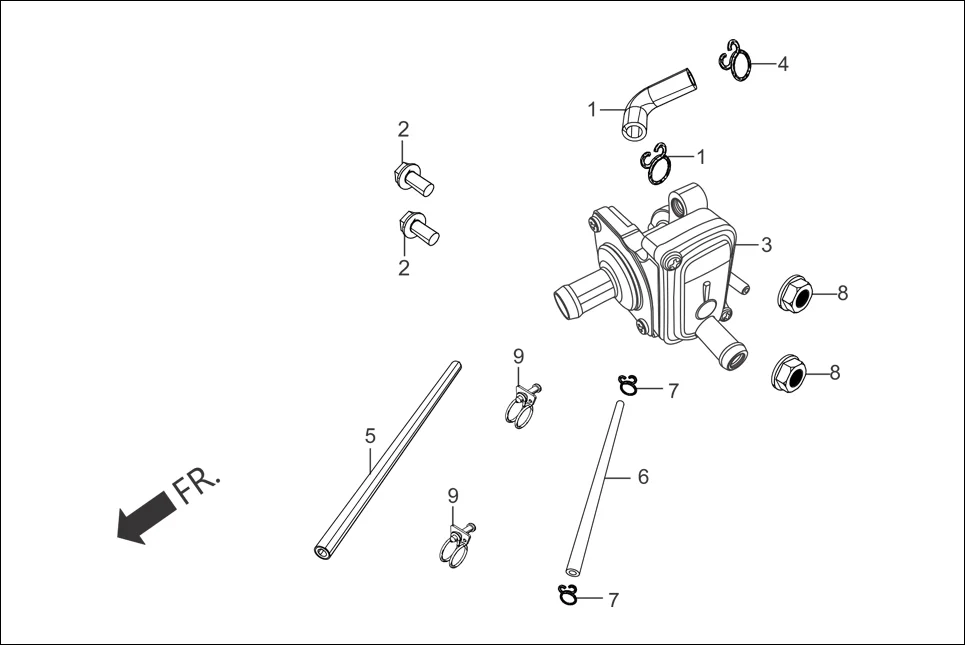

F-15A - AIR SUCTION VALVE
Hero Maestro EDGE (Apr, 2017) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17316-611-000 | CLIP, BREATHER TUBE | 2 | |
| 2 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 3 | 18600-AAW-301 | VALVE ASSY.AIR SUCTION | 1 | |
| 4 | 18651-AAW-000 | TUBE ASV | 1 | |
| 5 | 18652-AAW-300 | HOSE AIR SUCTION VALVE | 1 | |
| 6 | 18653-AAW-000 | TUBE ASV VACUUM | 1 | |
| 7 | 95002-02070 | CLIP, B-7 TUBE | 2 | |
| 8 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 9 | 91462-KM7-910 | CLIP, TUBE | 2 | |
