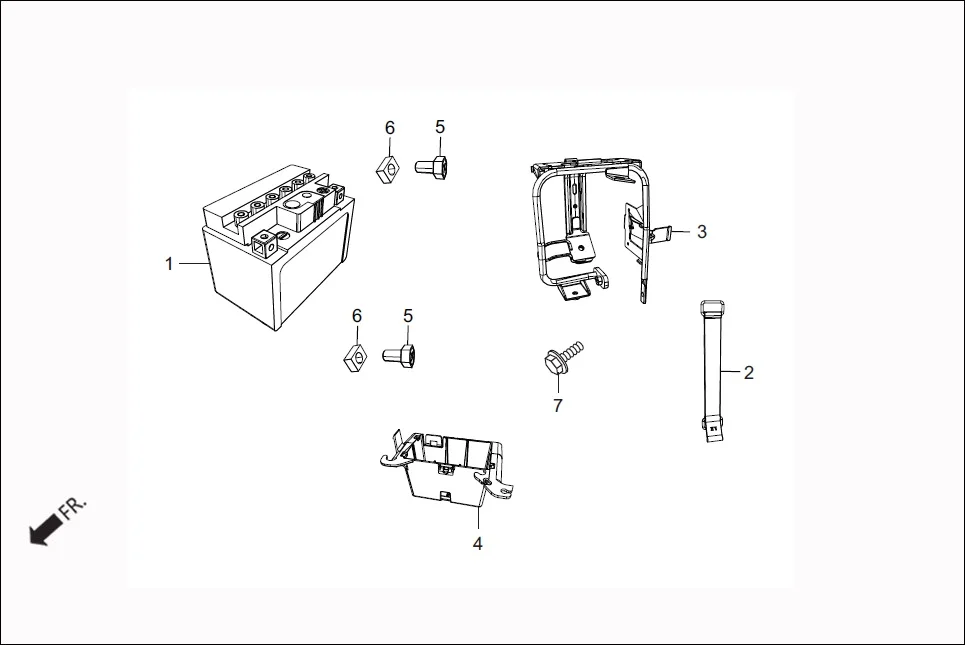

F-21 - BATTERY (W/O IMMOBILIZER)
Hero Maestro EDGE (Apr, 2017) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 2 | 50327-AAW-000 | BAND BATTERY | 1 | |
| 3 | 50330-AAW-310 | TRAY COMP BATTERY (LX) | 1 | |
| 4 | 50380-AAW-000 | BATTERY BOX | 1 | |
| 5 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 6 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 7 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
