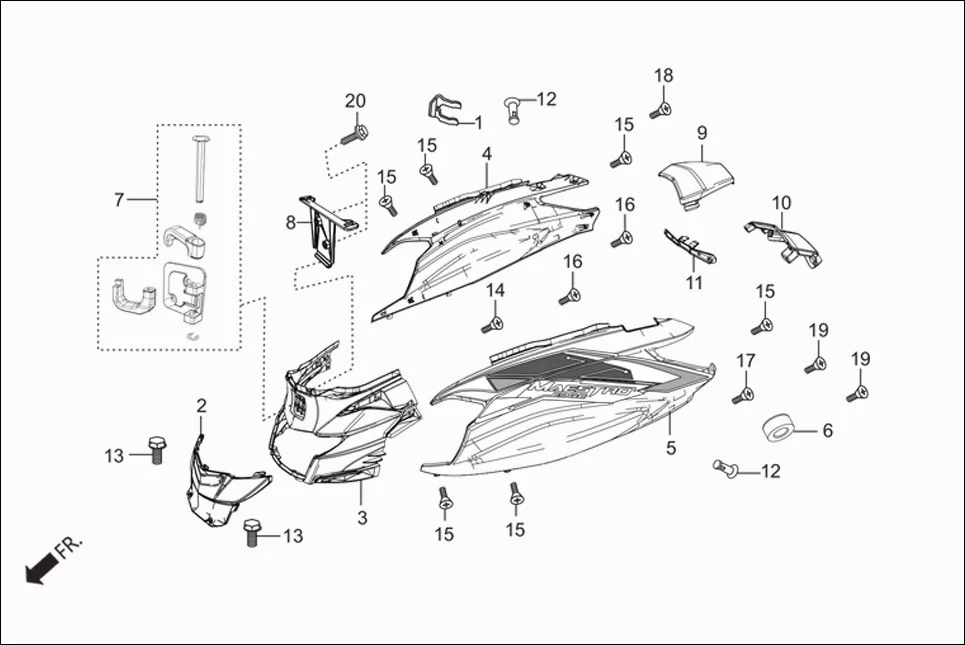

F-8 - BODY COVER
Hero Maestro EDGE (Apr, 2017) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 2 | 80151-AAW-000 | COV. CENTER | 1 | |
| 3 | 80152-AAW-000 | COV. CENTER B | 1 | |
| 4 | 83300-AAW-600R | SET R. BODY COVER (SPORTS RED) | 1 | |
| 4 | 83300-AAW-600S | SET R. BODY COVER (TECHNO BLUE ME.) | 1 | |
| 5 | 83400-AAW-600R | SET L. BODY COVER (SPORTS RED) | 1 | |
| 5 | 83400-AAW-600S | SET L. BODY COVER (TECHNO BLUE ME.) | 1 | |
| 6 | 83561-AAW-000 | GROMMET BODY COVER | 1 | |
| 7 | 83139-AAW-000 | LOAD HOOK ASSY | 1 | |
| 8 | 90301-AAW-000 | LOAD HOOK PLATE | 1 | |
| 9 | 83700-AAW-400 | SET COVER, RR. CENTER (,) | 1 | |
| 10 | 83702-AAW-400 | COVER, RR. CENTER LOWER | 1 | |
| 11 | 83560-AAW-000 | HINGE BODY COVER | 1 | |
| 12 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 13 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 14 | 93903-34110 | SCREW, TAPPING, 4 X 8. | 1 | |
| 15 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 6 | |
| 16 | 93903-35380 | SCREW TAPPING 5X16 | 2 | |
| 17 | 91509-AAW-000 | SCREW, PAN 5X17.5 | 1 | |
| 18 | 93901-22010 | SCREW TAPPING 3X6 | 1 | |
| 19 | 93500-06018-07 | SCREW PAN 6X18 | 2 | |
| 20 | 96001-06016-07 | BOLT, FLANGE, SH. 6 X 16 | 2 | |
