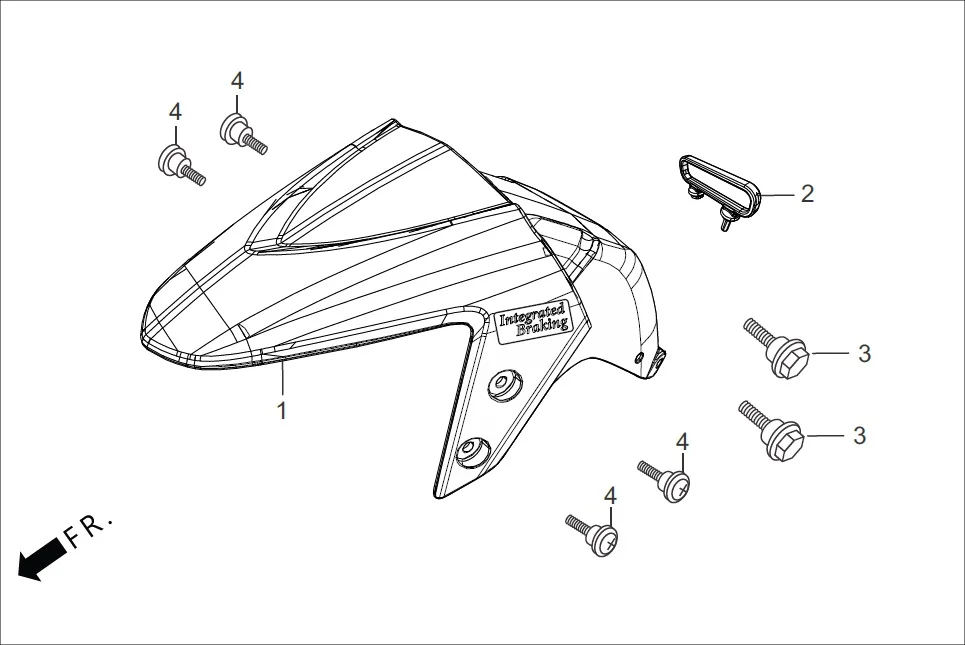

F-5-FRONT FENDER
HeroMaestro EDGE (Apr, 2017) · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61000-AAW-400R | SET, FR FENDER (MGM,NH-303M(T1) | 1 | |
| 2 | 45451-AAW-000 | GUIDE FR.FENDER CABLE | 1 | |
| 3 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 4 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 4 |
