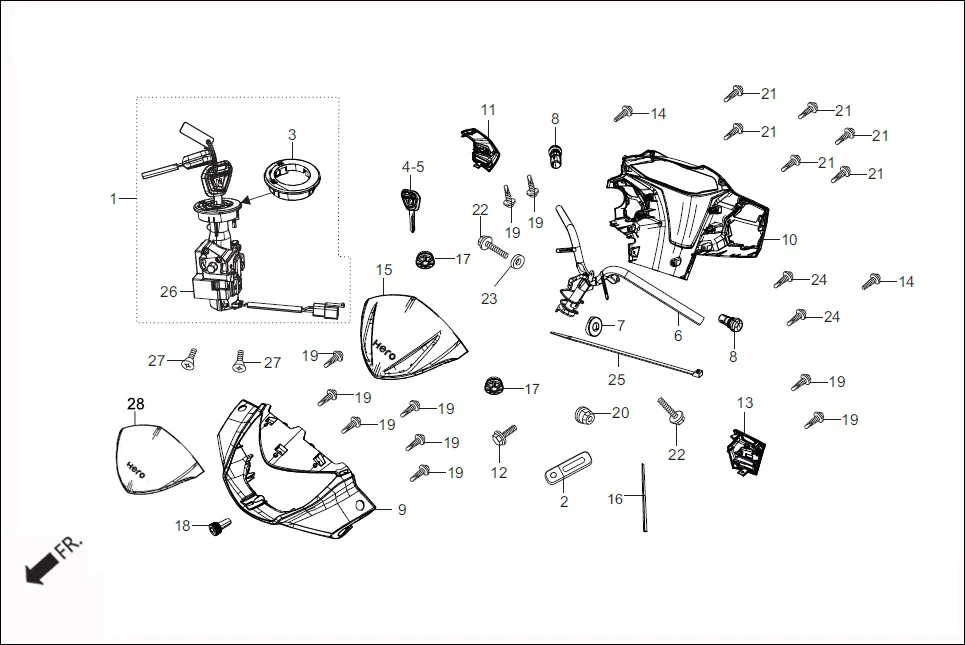

F-4 - STEERING HANDLE/HANDLE COVER
Hero Maestro EDGE (Apr, 2017) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-AAW-301 | KEY SET | 1 | |
| 2 | 80107-AAY-000 | CLIP 0.5X50 | 1 | |
| 3 | 35103-AAW-001 | DUMMY CAP | 1 | |
| 4 | 35121-AAW-001 | KEY BLANK NO. 1 | 1 | |
| 5 | 35121-AAW-011 | KEY BLANK NO. 1 | 1 | |
| 6 | 53100-AAW-300 | HANDLE COMP STRG | 1 | |
| 7 | 90502-AAW-000 | POST HANDLE WASHER | 1 | |
| 8 | 53155-AAW-000 | END STRG HANDLE | 2 | |
| 9 | 53205-AAW-000R | COV. HANDLE FR(PSWM(WH004P) | 1 | |
| 10 | 53206-AAW-000 | COV. HANDLE RR | 1 | |
| 11 | 53218-AAW-300 | COVER HANDLE R RR. | 1 | |
| 12 | 95801-10055-00 | BOLT, FLANGE, 10X55 | 1 | |
| 13 | 53228-AAW-000 | COV. HNDL L RR | 1 | |
| 14 | 93903-25180 | SCREW, TAPPING, 5 X 10 | 2 | |
| 15 | 61140-AAW-000 | SET SPEEDOMETER VISOR | 1 | |
| 16 | 83403-AAW-000 | CUSHION SEAL FR. VISOR | 1 | |
| 17 | 83407-AAW-000 | CUSHION, FR VISOR | 2 | |
| 18 | 90116-KTP-900 | SCREW WASH 5X16 | 1 | |
| 19 | 93901-32220 | SCREW TAPPING 3X10 | 10 | |
| 20 | 90304-KCS-920 | NUT`U 10 MM | 1 | |
| 21 | 93903-34480 | SCREW, TAPPING, 4X 16 | 6 | |
| 22 | 93401-06020-00 | BOLT, WASHER, 6 X 20 | 2 | |
| 23 | 94102-12000 | WASHER, PLAIN, 12MM | 1 | |
| 24 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 2 | |
| 25 | 90657-AAW-300 | CABLE TIE (LONG) | 1 | |
| 26 | 35010-ABS-00099 | KEY SET | 1 | |
| 27 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
