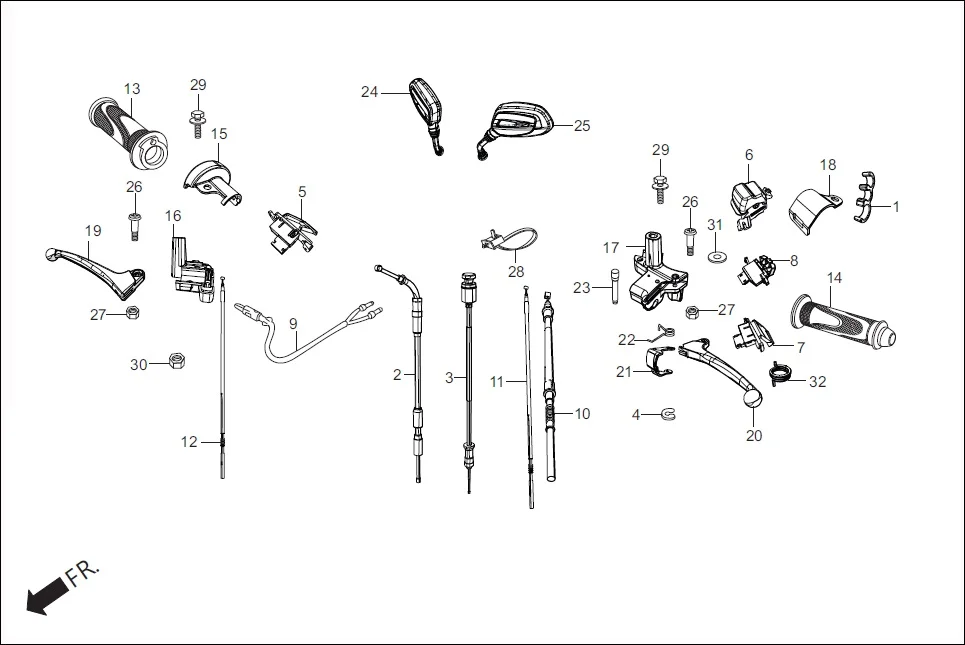

F-3 - HANDLE LEVER/SWITCH/CABLE
Hero Maestro EDGE (Apr, 2017) · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16213-AAW-000 | CABLE RETAINER | 1 | |
| 2 | 17910-AAW-00099 | CABLE COMP., THROTTLE | 1 | |
| 3 | 17950-AAW-300 | CABLE COMP. CHOKE | 1 | |
| 4 | 30158-GW3-980 | RING E TYPE 3MM | 1 | |
| 5 | 35160-AAW-001 | SW UNIT START | 1 | |
| 6 | 35170-AAW-001 | SW UNIT DIMMER | 1 | |
| 7 | 35180-AAW-001 | SW UNIT HORN | 1 | |
| 8 | 35200-AAW-001 | SW UNIT WINKER | 1 | |
| 9 | 35340-KTP-890 | SWITCH ASSY., FR. STOP | 1 | |
| 10 | 43450-AAW-000 | CABLE COMP, RR BRAKE | 1 | |
| 11 | 45440-AAW-000 | CABLE COMP LH FR BRAKE | 1 | |
| 12 | 45450-AAW-000 | CABLE COMP FR BRAKE | 1 | |
| 13 | 53140-AAW-000 | GRIP COMP., THROT. | 1 | |
| 14 | 53166-AAW-000 | GRIP L HANDLE | 1 | |
| 15 | 53167-AAW-300 | HOUSING, UPP., THROT. | 1 | |
| 16 | 53168-AAW-000 | HOUSING UND.THROTTLE | 1 | |
| 17 | 53172-AAL-100 | BRKT HANDLE | 1 | |
| 18 | 53173-KPL-900 | BAND, HANDLE BRKT | 1 | |
| 19 | 53175-AAW-000 | LEVER R STRG.HANDLE | 1 | |
| 20 | 53178-AAL-100 | LEVER L HANDLE | 1 | |
| 21 | 53181-AAL-100 | LEVER COMP PARKING | 1 | |
| 22 | 53182-AAL-100 | SPRING RETURN LEVER | 1 | |
| 23 | 53183-GW3-980 | PIN, PIVOT, PARKING LEVER | 1 | |
| 24 | 88110-AAW-000 | MIRROR ASSY R BACK | 1 | |
| 25 | 88120-AAW-000 | MIRROR ASSY L BACK | 1 | |
| 26 | 90115-KPL-900 | SCREW, HNDL LEVER PIVOT | 2 | |
| 27 | 90304-KPL-900 | NUT HEX 5 MM | 2 | |
| 28 | 90657-AAW-300 | CABLE TIE (LONG) | 1 | |
| 29 | 93401-06020-00 | BOLT, WASHER, 6 X 20 | 2 | |
| 30 | 94002-10070-0S | NUT, HEX., 10MM | 1 | |
| 31 | 94103-05800 | WASHER,PLAIN, 5.5MM | 1 | |
| 32 | 94203-AAW-000 | SPRING HANDLE LEVER | 1 | |
