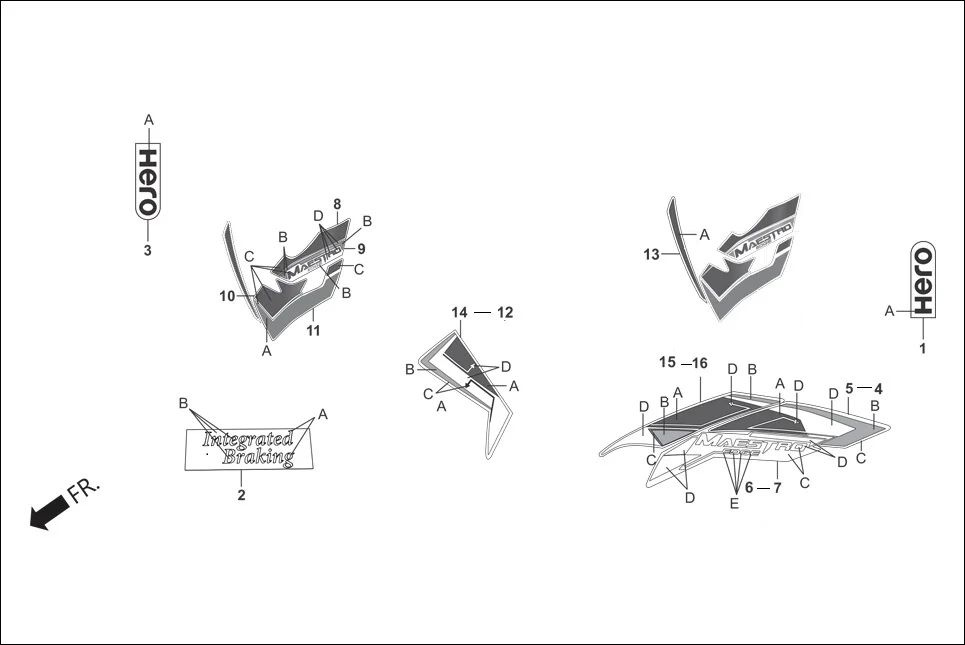

F-26 - MARK/STRIPE
Hero Maestro EDGE (Apr, 2017) · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83771-AAW-000S | MARK CENTER COWL (TYPE2) | 1 | |
| 2 | 86217-AAW-000S | MARK,IB FR FENDER | 1 | |
| 3 | 86531-AAW-000 | MARK,WIND SCREEN | 1 | |
| 4 | 87110-AAW-400V | STRIPE A R BODY COVER | 1 | |
| 4 | 87110-AAW-400W | STRIPE A R BODY COVER | 1 | |
| 5 | 87111-AAW-400V | STRIPE A L BODY COVER | 1 | |
| 5 | 87111-AAW-400W | STRIPE A L BODY COVER | 1 | |
| 6 | 87112-AAW-6000 | STRIPE B R BODY COVER | 1 | |
| 7 | 87113-AAW-6000 | STRIPE B L BODY COVER | 1 | |
| 8 | 87114-AAW-400V | STRIPE A COVER FR CENTER A | 1 | |
| 8 | 87114-AAW-400W | STRIPE A COVER FR CENTER A | 1 | |
| 9 | 87115-AAW-600R | STRIPE B COVER FR CENTER A | 1 | |
| 9 | 87115-AAW-600S | STRIPE B COVER FR CENTER A | 1 | |
| 10 | 87116-AAW-400V | STRIPE C COVER FR CENTER A | 1 | |
| 10 | 87116-AAW-400W | STRIPE C COVER FR CENTER A | 1 | |
| 11 | 87117-AAW-400V | STRIPE D COVER FR CENTER A | 1 | |
| 11 | 87117-AAW-400W | STRIPE D COVER FR CENTER A | 1 | |
| 12 | 87118-AAW-400V | STRIPE A R COVER FR | 1 | |
| 12 | 87118-AAW-400W | STRIPE A R COVER FR | 1 | |
| 13 | 87119-AAW-400U | STRIPE B R COVER FR | 1 | |
| 14 | 87121-AAW-400V | STRIPE A L COVER FR | 1 | |
| 14 | 87121-AAW-400W | STRIPE A L COVER FR | 1 | |
| 15 | 87122-AAW-400V | STRIPE C R BODY COVER | 1 | |
| 15 | 87122-AAW-400W | STRIPE C R BODY COVER | 1 | |
| 16 | 87123-AAW-400V | STRIPE C L BODY COVER | 1 | |
| 16 | 87123-AAW-400W | STRIPE C L BODY COVER | 1 | |
