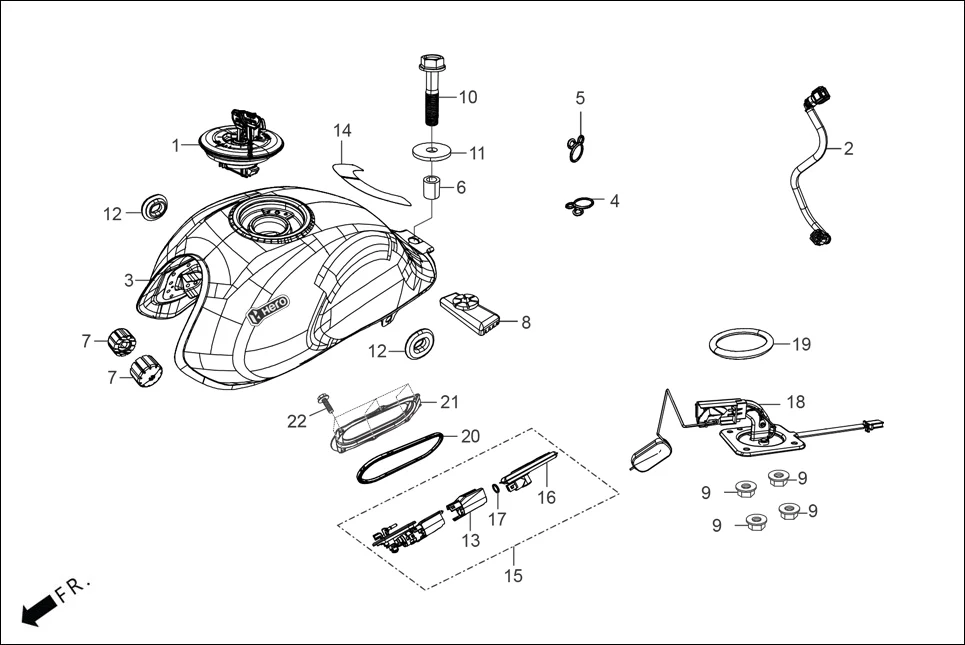

F-13 - FUEL TANK
Hero HF DELUXE BLACK_BF THB(Sept.,2024) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17620-ACK-40099 | CAP COMP FUEL FILLER BS6 ETHANOL | 1 | |
| 2 | 17570-AEC-231 | HOSE COMP. FUEL FEED | 1 | |
| 3 | 17520-ACK-510B | SET, FUEL TANK (BLACK NH-1) | 1 | |
| 5 | 95002-02080 | CLIP, TUBE | 1 | |
| 6 | 90324-KST-940 | COLLAR, 8.3X19 MM | 1 | |
| 7 | 17611-KCC-900 | CUSHION, FR. FUEL TANK | 2 | |
| 8 | 17613-KCC-900 | CUSHION, RR. TANK | 1 | |
| 10 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
| 11 | 90325-KCC-900 | WASHER, PLAIN, 8 MM | 1 | |
| 13 | 16703-ACK-901 | FUEL PUMP SUMP | 1 | |
| 14 | 17506-KST-940 | FILM. TANK PROTECTOR | 1 | |
| 15 | 16700-ACK-901 | UNIT ASSY FUEL PUMP | 1 | |
| 16 | 16701-ACK-901 | FUEL PUMP FILTER | 1 | |
| 17 | 16702-AAW-B02 | FUEL PUMP ‘O’ RING | 1 | |
| 18 | 37800-ACK-00099 | UNIT ASSY FUEL | 1 | |
| 19 | 91305-ACK-400 | O-RING, 39.5X5 | 1 | |
| 20 | 17572-ACK-400 | GASKET FUEL PUMP | 1 | |
| 21 | 17507-AAF-400 | PLATE SETTING | 1 | |
| 22 | 96001-06010-07 | BOLT FLANGE, SH., 6 X 10 | 6 | |
