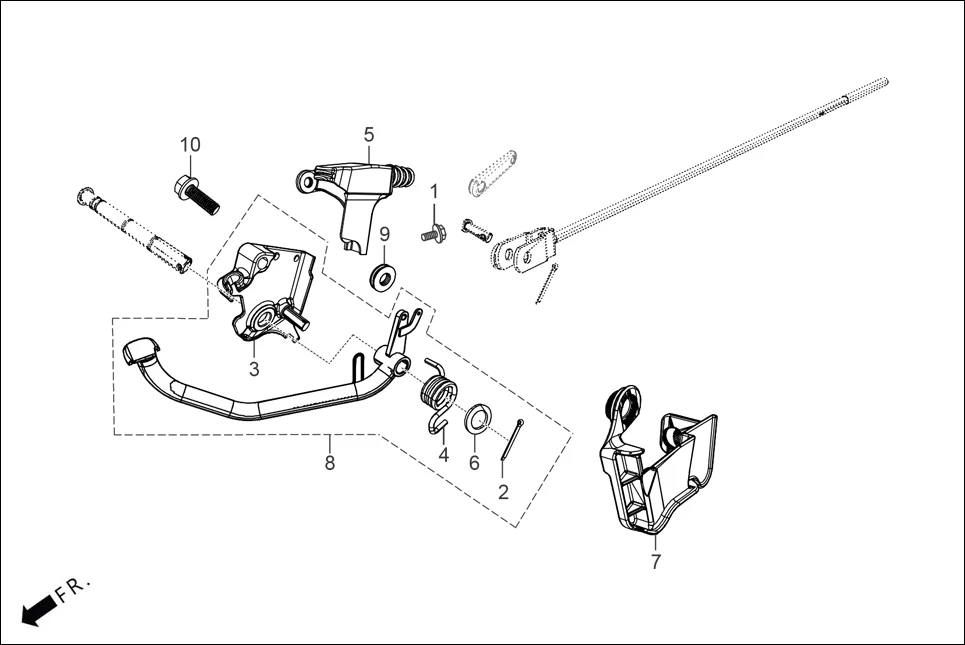

F-18A - CBS ASSY.
Hero HF DELUXE BLACK_BF THB(Sept.,2024) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 95701-06008-00 | BOLT, FLANGE, 6X8 | 1 | |
| 3 | 46513-AAE-B00 | CASING CBS | 1 | |
| 4 | 46515-AAH-F00 | SPRING LEVER DELAY | 1 | |
| 5 | 46519-AAG-900 | CBS DUST BOOT | 1 | |
| 6 | 90545-AAH-F00 | WASHER CASING PIVOT | 1 | |
| 7 | 46522-AAH-F00 | CBS COVER ASSY | 1 | |
| 8 | 46544-AAE-B00 | RR BRAKE PEDAL & ROD SUB ASSY | 1 | |
| 10 | 95701-08040-00 | BOLT, FLANGE, 8 X 40 | 1 | |
