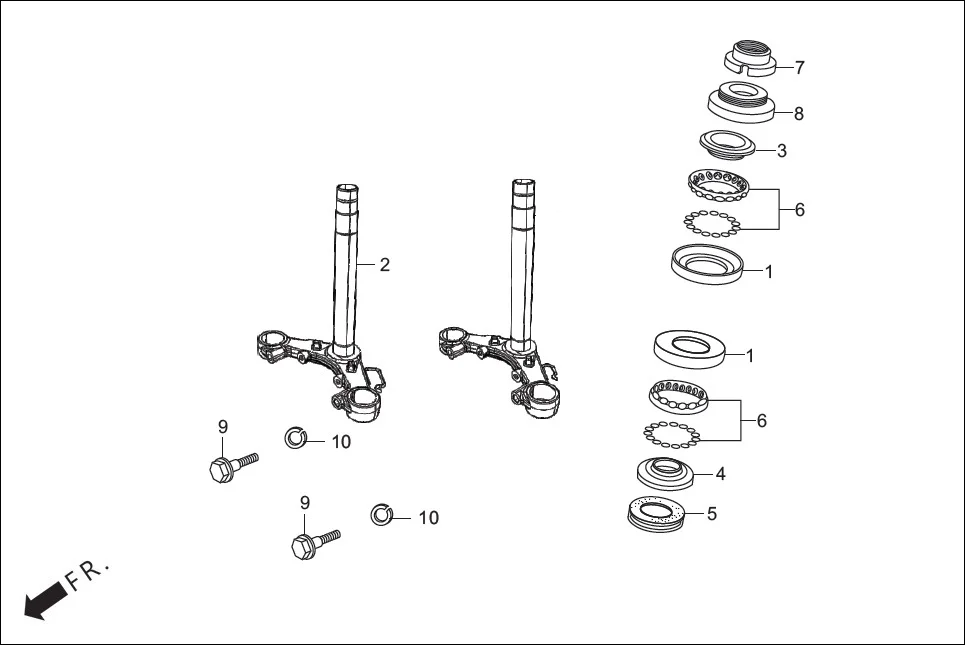

F-5-DRUM - STEERING STEM
Hero Glamour BSVI Techno OBD II(Jan,2023) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50301-KTR-900 | RACE, STEERING BALL | 2 | |
| 2 | 53200-AAF-400 | STEM, COMP., STEERING | 1 | |
| 3 | 53211-268-010 | RACE, STEERING TOP CONE | 1 | |
| 4 | 53212-200-000 | RACE, STEERING BOTTOM CONE | 1 | |
| 5 | 53214-200-000 | DUST SEAL, STEERING HEAD | 1 | |
| 6 | 53215-KTR-900 | BALL, ASSY. STEERING | 2 | |
| 7 | 53221-KTR-900 | THREAD, STEERING HEAD TOP | 1 | |
| 8 | 53222-KTR-900 | MUD GUARD, STEERING HEAD TOP | 1 | |
| 9 | 95701-08040-00 | BOLT, FLANGE, 8 X 40 | 2 | |
| 10 | 94111-08000 | WASHER, SPRING, 8MM | 2 | |
