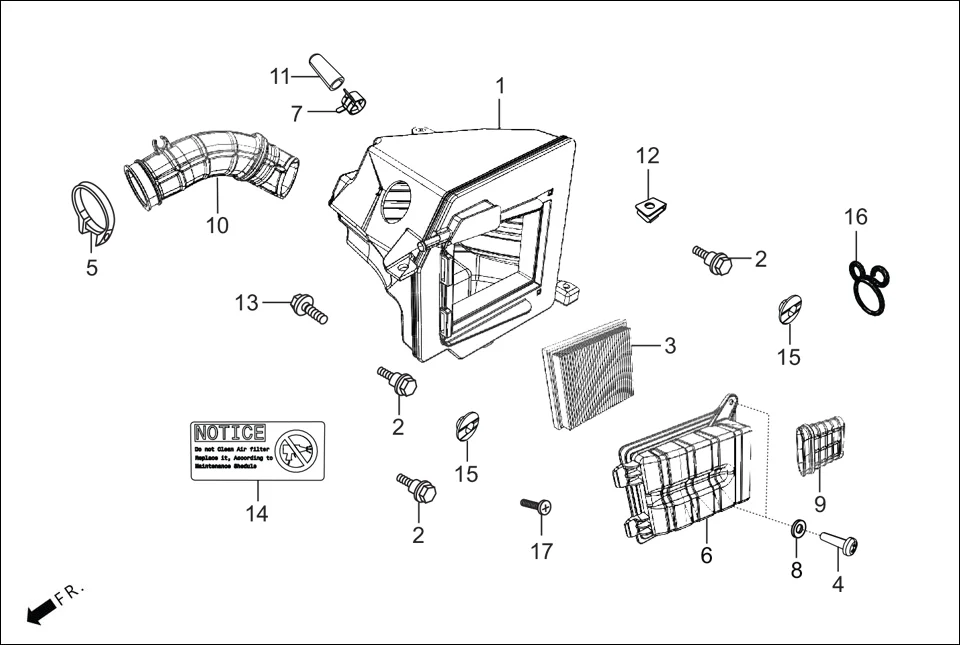

F-15 - AIR CLEANER
Hero Glamour BSVI Techno OBD II(Jan,2023) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17209-AAF-400 | CASE COMP AIR/C | 1 | |
| 3 | 17208-AAB-A00 | ELEMENT COMP AIR/C | 1 | |
| 4 | 93500-05020-0A | SCREW PAN 5X20 | 2 | |
| 5 | 95018-46320 | BAND 46 AIR/C CONN. TUBE | 1 | |
| 6 | 17220-AAF-400 | COVER AIR/C CASE | 1 | |
| 7 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 8 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 9 | 17251-AAN-B00 | DUCT, AIR/C | 1 | |
| 10 | 17253-AAN-B00 | TUBE, AIR/C, CONNECTOR. | 1 | |
| 11 | 17227-ABA-000 | V.TUBE 11X15X40 | 1 | |
| 14 | 87509-AAP-000 | LABEL AIR/C ELEMENT NOTICE | 1 | |
| 15 | 61107-AAF-400 | COLLAR 6MM | 2 | |
| 16 | 95004-AAL-500 | CLIP TUBE | 1 | |
| 17 | 93500-04032-0G | SCREW, PAN, 4 X 32 | 1 | |
