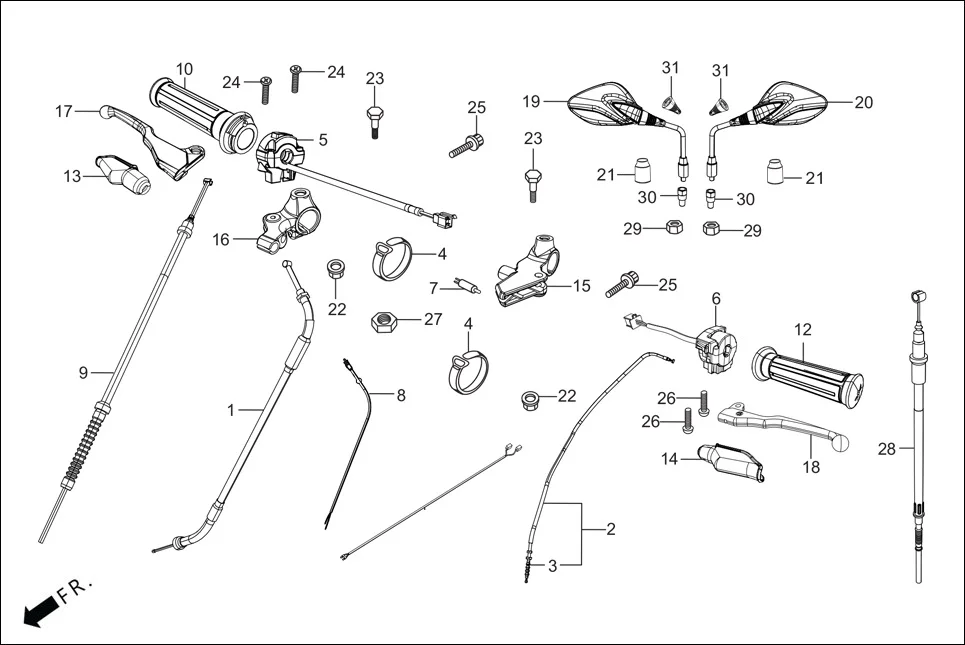

F-3-DRUM - HANDLE LEVER/SWITCH/CONTROL CABLE
Hero Glamour BSVI Techno OBD II(Jan,2023) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 8 | 35340-KST-950 | SWITCH ASSY., FR. STOP | 1 | |
| 9 | 45475-ABA-200 | CABLE COMP., FR. BRAKE | 1 | |
| 13 | 53171-KCC-900 | COVER R HANDLE LEVER | 1 | |
| 16 | 53173-KTR-A20 | BRACKET., R. HANDLE LEVER | 1 | |
| 17 | 53175-AAF-H00 | LEVER COMP.R STRG.HNDL. | 1 | |
| 28 | 45450-AAF-400 | CABLE COMP. COMBI BRAKE | 1 | |
