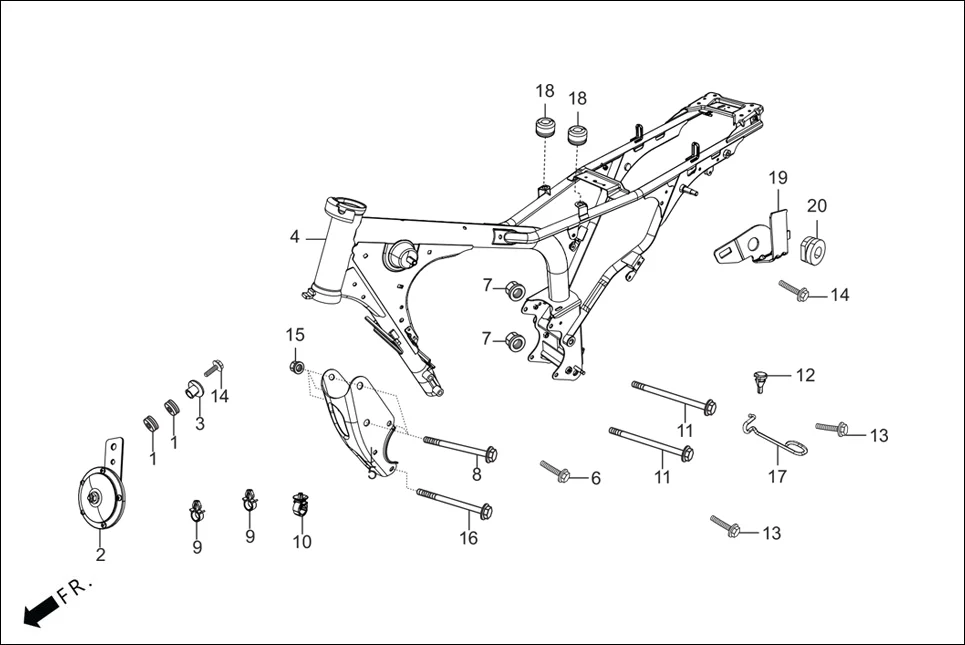

F-25 - FRAME BODY
Hero Glamour BSVI Techno OBD II(Jan,2023) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 2 | 38110-AAN-00099 | HORN COMP | 1 | |
| 2 | 38110-AAE-001 | HORN COMP., | 1 | |
| 3 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 4 | 50100-ACL-D00 | FRAME BODY COMP., | 1 | |
| 5 | 50351-AAF-400 | PLATE FRONT ENG HANGER | 1 | |
| 8 | 95801-08090-00 | BOLT FLANGE 8X90 | 3 | |
| 9 | 43443-AAC-830 | CLIP CBS CABLE | 2 | |
| 10 | 50157-AAF-400 | CLIP HARNESS | 1 | |
| 11 | 90019-AAG-300 | BOLT FLANGE 10 X 110 | 2 | |
| 12 | 50137-AAR-000 | PLUG CABLE RETENTION | 1 | |
| 15 | 94050-08000 | NUT, FLANGE, 8MM | 4 | |
| 17 | 50141-ACL-D00 | GUIDE CONTROL CABLE | 1 | |
| 18 | 50328-KVN-900 | RUBBER, TANK MTG. | 2 | |
| 19 | 50161-ACL-D00 | BRACKET | 1 | |
| 20 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 1 | |
