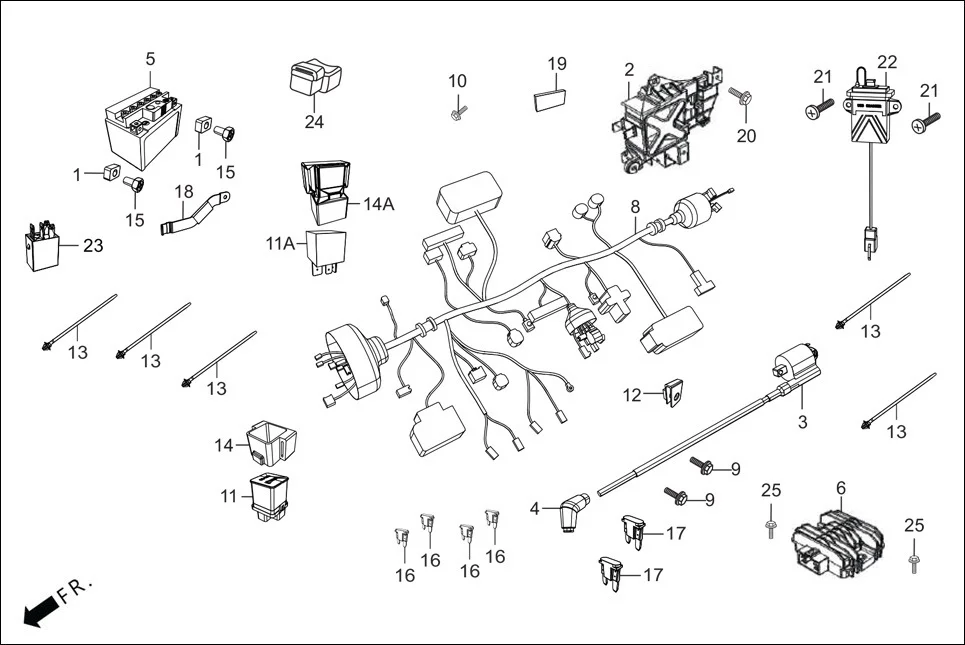

F-24-WIRE HARNESS/BATTERY
HeroGlamour BSVI Techno OBD II(Jan,2023) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 2 | 1723A-AAN-B00 | BOX BATTERY ASSY | 1 | |
| 3 | 30510-AAF-401 | COIL COMP IGNITION. | 1 | |
| 3 | 30510-AAC-801 | COIL COMP IGNITION | 1 | |
| 4 | 30700-ACK-00099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 6 | 31600-AAC-B02 | REG RECT COMP | 1 | |
| 7 | 32108-344-820 | COVER, CONNECTOR | 1 | |
| 8 | 32100-ACL-500 | HARNESS, WIRE | 1 | |
| 9 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 10 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 11 | 38501-AAG-D0099 | RELAY COMP. START | 1 | |
| 12 | 90311-KVH-900 | NUT CLIP 6 MM | 1 | |
| 13 | 91540-AAN-410 | CLIP, BAND HARN | 5 | |
| 14 | 38506-AAN-B01 | SUSPENSION START RELAY | 1 | |
| 14 | 38506-AAF-401 | SUSP. RELAY START | 1 | |
| 15 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 16 | 98210-HMC-000 | MINI FUSE 10A | 4 | |
| 17 | 98215-HMC-000 | MINI FUSE 15A | 2 | |
| 18 | 50327-AAN-B00 | BAND BATTERY ASSY | 1 | |
| 19 | 83407-KTR-940 | RUBBER, BATTERY | 1 | |
| 20 | 90111-187-000 | BOLT, FLANGE. 6 MM | 1 | |
| 21 | 93903-24310 | SCREW, TAPPING, 4X12 | 2 | |
| 22 | 31300-AAJ-B0099 | USB CHARGER ASSY | 1 | |
| 23 | 38551-AAW-501 | RELAY COMP. POWER (MICRO ISO 4P) | 1 | |
| 24 | 38506-KSP-910 | SUS., POWER RELAY | 1 | |
| 25 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 |
