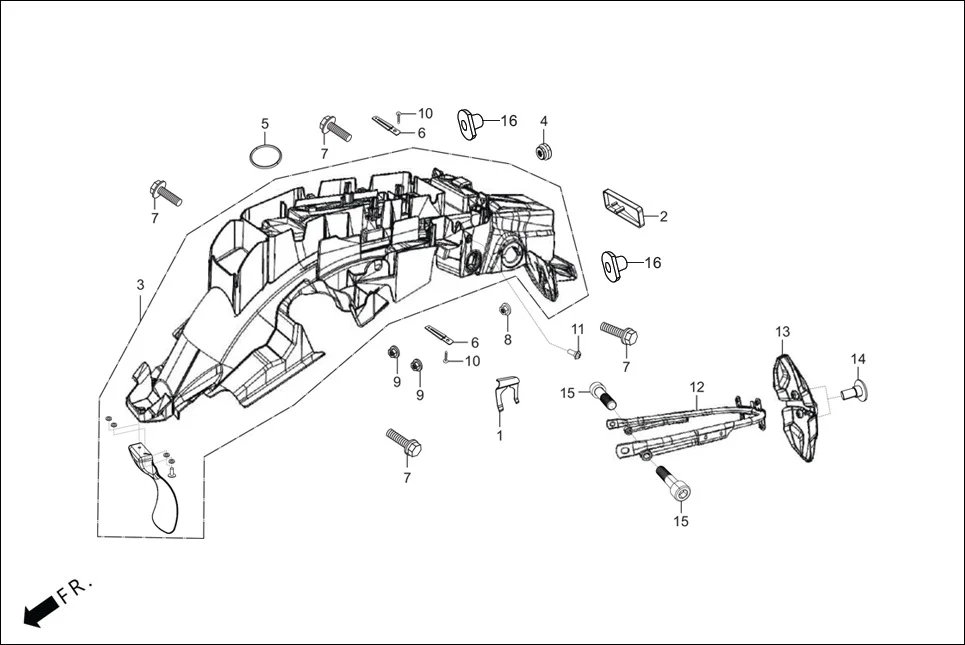

F-21 - REAR FENDER
Hero Glamour BSVI Techno OBD II(Jan,2023) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75581-AAN-B00 | SET SPRING LOCK KEY | 1 | |
| 2 | 33741-KST-920 | REFLEX REFLECTOR | 1 | |
| 2 | 33741-AAE-201 | REFLEX REFLECTOR | 1 | |
| 3 | 80100-ACL-800 | FENDER COMP RR. | 1 | |
| 5 | 80123-KCC-870 | BAND, TOOL | 1 | |
| 6 | 94591-27000 | CLIP 2 X 70 | 2 | |
| 9 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
| 12 | 52106-ACL-800 | STAY HUGGER FENDER | 1 | |
| 13 | 80350-ACL-800 | RR HUGGER FENDER | 1 | |
| 14 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 4 | |
| 15 | 96700-SAA-000 | SOCKET BOLT 10X40 | 2 | |
| 16 | 90311-AAA-000 | NUT REAR FENDER | 2 | |
