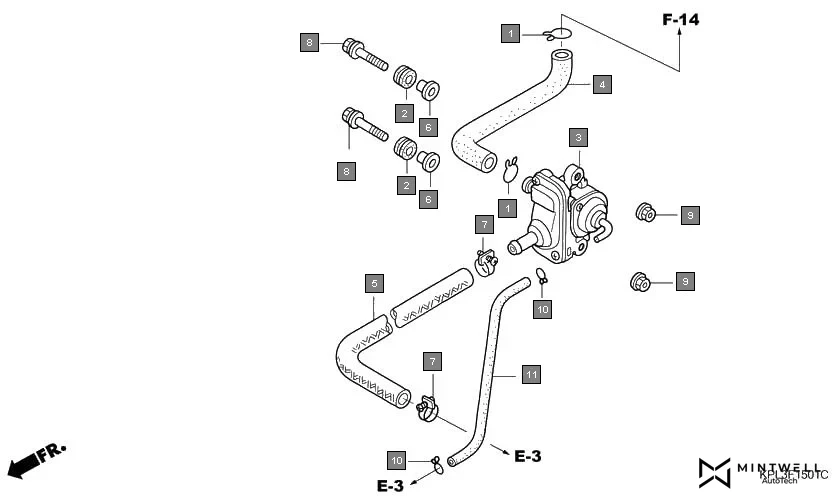

F-15-1-AIR SUCTION VALVE(SCV100CM2)
HONDAActiva SCV100CM2 · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17316-611-000 | CLIP, BREATHER TUBE | 2 | |
| 2 | 17622-GB7-900 | RUBBER, CUSHION | 2 | |
| 3 | 18600-KPL-902 | VALVE ASSY., AIR SUCTION | 1 | |
| 4 | 18651-KPL-900 | TUBE, AIR SUCTION VALVE | 1 | |
| 5 | 18652-KPL-900 | HOSE, AIR SUCTION VALVE | 1 | |
| 6 | 90501-KC2-750 | WASHER, REGULATOR SETTING | 2 | |
| 7 | 91462-KM7-910 | CLIP, TUBE | 2 | |
| 8 | 93404-06030-08 | BOLT WASH 6X30 | 2 | |
| 9 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 10 | 95002-02070 | CLIP, B-7 TUBE | 2 | |
| 11 | 95005-35160-20 | TUBE 3.5X160 | 1 |
