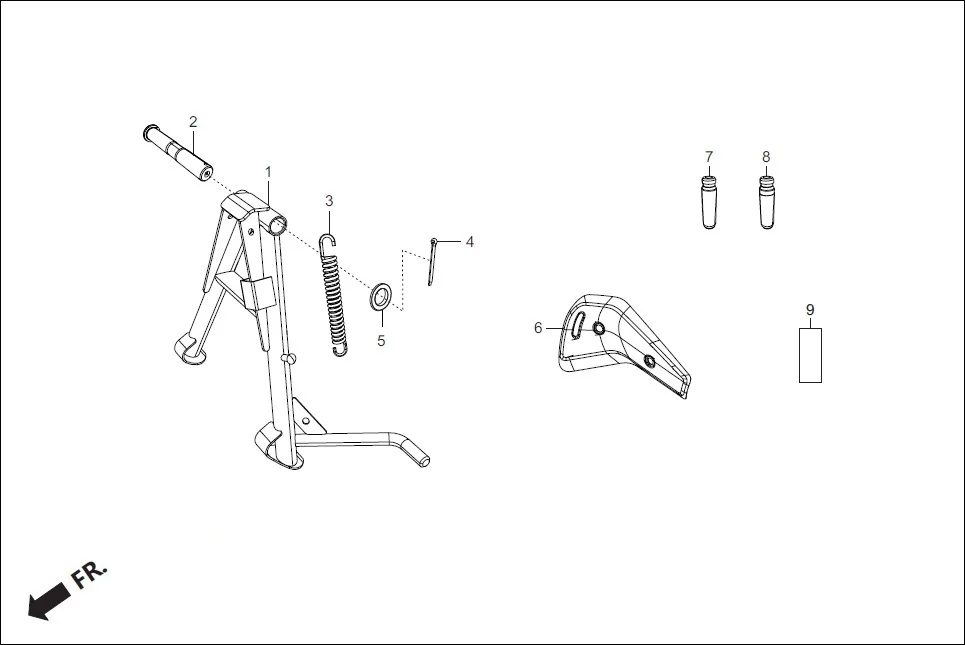

F-29 - (OPTIONAL)
Hero Xpulse 200 2V BSVI (Jun, 2020) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50500-ABW-100 | STAND COMP MAIN | 1 | |
| 2 | 50526-KCT-690 | SHAFT, MAIN STAND PIVOT | 1 | |
| 3 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 4 | 95014-71202 | SPRING B., MAIN STAND | 1 | |
| 5 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 6 | 94102-10000 | WASHER, PLAIN, 10MM | 1 | |
| 7 | 1831A-ABW-B00 | COVER MUFFLER 2 ASSY | 1 | |
| 8 | 12204-AAB-305 | GUIDE EXH. VALVE OVER SIZE | 1 | |
| 9 | 12205-AAB-305 | GUIDE INLET VALVE OVER SIZE | 1 | |
| 9 | 99670-ABW-B000-20 | DOME FUEL CAP | 1 | |
| 10 | 99670-ABW-B000-21 | DOME L FUEL TANK | 1 | |
| 10 | 99670-ABW-B000-22 | DOME R FUEL TANK | 1 | |
