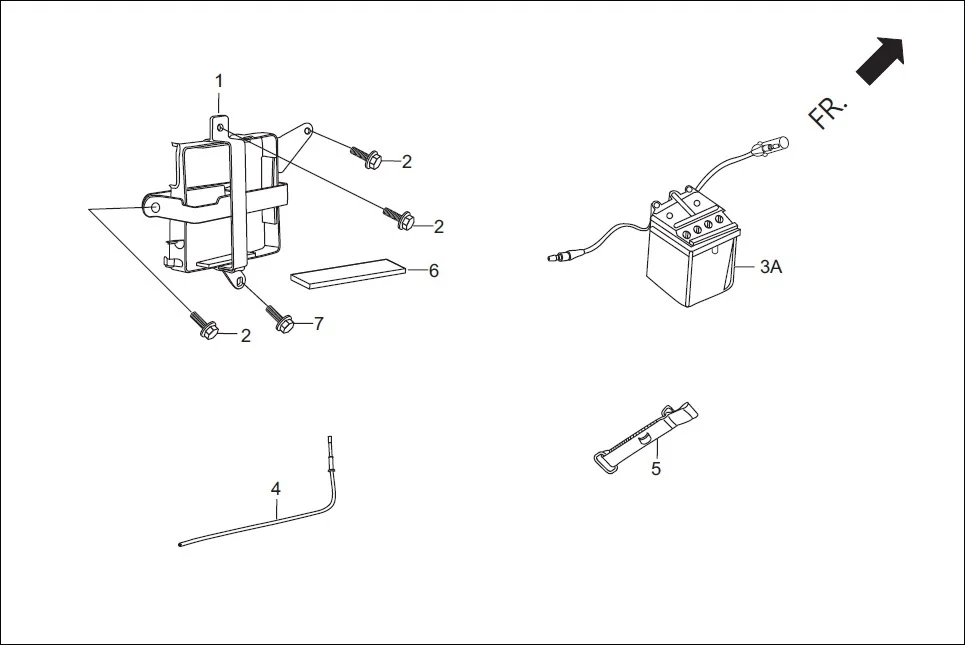

F-24A-KICK - BATTERY ASSY
Hero Achiever (Nov, 2014) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17232-KTN-900 | CASE COMP., BATTERY | 1 | |
| 2 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 3 | |
| 3 | 31500-KC5-000 | BATTERY ASSY. | 1 | |
| 4 | 31502-KTN-700 | TUBE, BATTERY BREATHER | 1 | |
| 5 | 50327-198-900 | BAND,BATTERY | 1 | |
| 6 | 50383-KRC-900 | RUBBER , BATTERY | 1 | |
| 7 | 95701-06008-00 | BOLT, FLANGE, 6X8 | 1 | |
