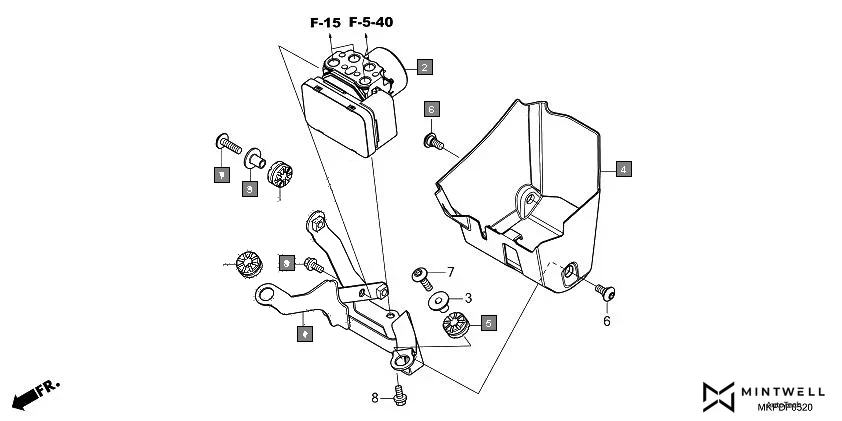

F-5-20-ABS MODULATOR
HONDA500X CB500XAM · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50345-MKP-J80 | STAY COMP., ABS MODULATOR | 1 | |
| 2 | 57110-MKP-J81 | MODULATOR ASSY. | 1 | |
| 3 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 2 | |
| 4 | 61410-MKP-J80 | COVER, ABS MODULATOR | 1 | |
| 5 | 77208-KW7-900 | RUBBER B, SEAT MOUNTING | 3 | |
| 6 | 90115-MGZ-J00 | SCREW, SPECIAL, 6X14 | 2 | |
| 7 | 90130-KYJ-900 | SCREW, PAN, 6X22 | 2 | |
| 8 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 2 |
