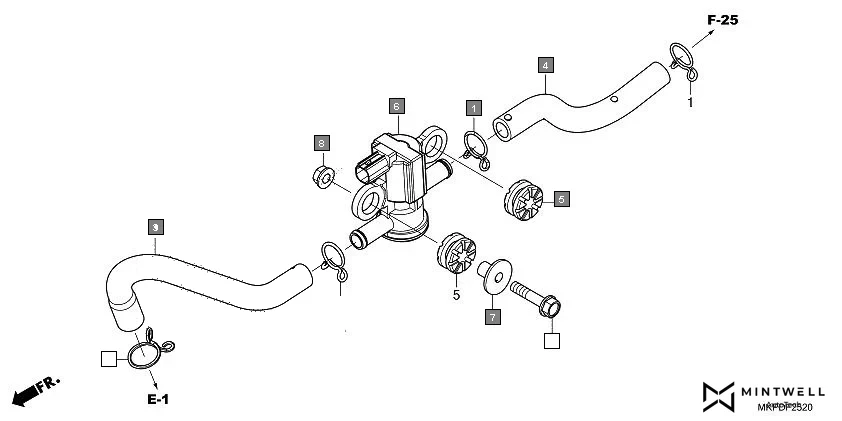

F-25-20-AIR INJECTION SOLENOID VALVE
HONDA500X CB500XAM · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15772-551-000 | CLIP, BREATHER TUBE | 3 | |
| 2 | 17369-KB4-670 | CLIP, BREATHER TUBE | 1 | |
| 3 | 18613-MGZ-J00 | TUBE, AIR INJECTION SOLENOID | 1 | |
| 4 | 18653-MGZ-D00 | TUBE(AISV-AIR CLEANER) | 1 | |
| 5 | 33115-KVK-900 | RUBBER, HEADLIGHT | 2 | |
| 6 | 36450-KVK-902 | VALVE ASSY., AIR INJECTION SOLENOID | 1 | |
| 7 | 61104-428-730 | COLLAR, FR. FENDER(BLACK)..... (FOR RR.) | 1 | |
| 8 | 94050-06080 | NUT, FLANGE, 6MM | 1 | |
| 9 | 95701-06028-08 | BOLT, FLANGE, 6X28 | 1 |
