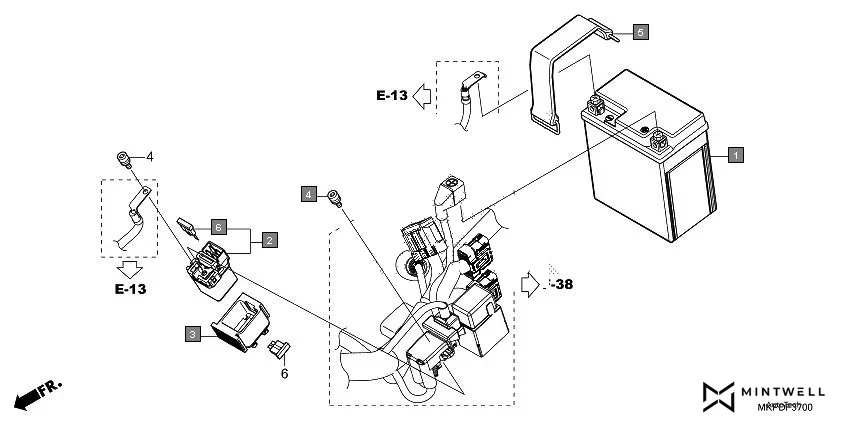

F-37-BATTERY
HONDA500X CB500XAM · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KZZ-J01 | BATTERY(YTZ8V)(YUASA) | 1 | |
| 2 | 35850-MT4-003 | SWITCH ASSY., STARTER MAGNETIC | 1 | |
| 3 | 35856-MGZ-B00 | RUBBER, SHOCK | 1 | |
| 4 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 5 | 95012-17001 | BAND F, BATTERY(155MM) | 1 | |
| 6 | 98200-33000 | FUSE, BLADE(30A) | 2 |
