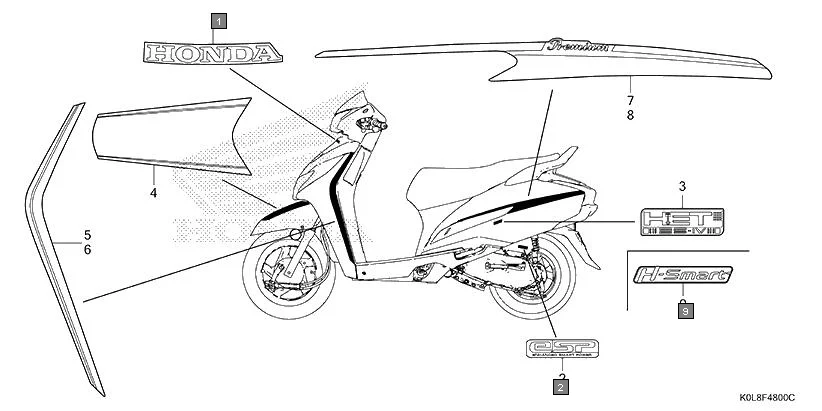

F-48 - MARK
HONDA Activa125 SCV125N · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-K0L-D00ZC | MARK, HONDA(85MM) *TYPE3* | 2 | |
| 1 | 86101-K0L-D00ZA | MARK, HONDA(85MM) *TYPE2* | 1 | |
| 1 | 86101-K0L-D00ZB | MARK, HONDA(85MM) *TYPE1* | 2 | |
| 1 | 86101-K0L-D70ZA | MARK, HONDA(85MM) *TYPE1* | 1 | |
| 2 | 86170-K0L-D00 | MARK, ENGINE | 1 | |
| 9 | 86834-K0P-D80ZA | MARK(H-SMART) *TYPE1* | 2 | |
