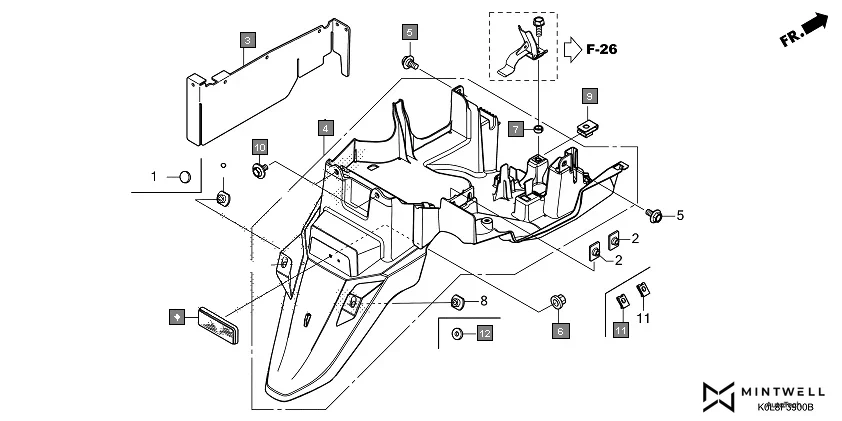

F-39 - REAR FENDER
HONDA Activa125 SCV125N · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 3 | 80104-K0L-D00 | PLATE, RR. FENDER SPLASH GUARD | 1 | |
| 4 | 80105-K0L-D60 | FENDER COMP., RR. | 1 | |
| 5 | 90111-KWP-900 | BOLT, INNER COVER | 2 | |
| 6 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 1 | |
| 12 | 90501-K0Y-D00 | WASHER, PLAIN, 5MM | 2 | |
